- Item: Small tube amplifier
- Type: Double tetrode GU-17
- Posted: 1 December 2014
- Builder: lonerider
- Country: Romania
- Comments: 0

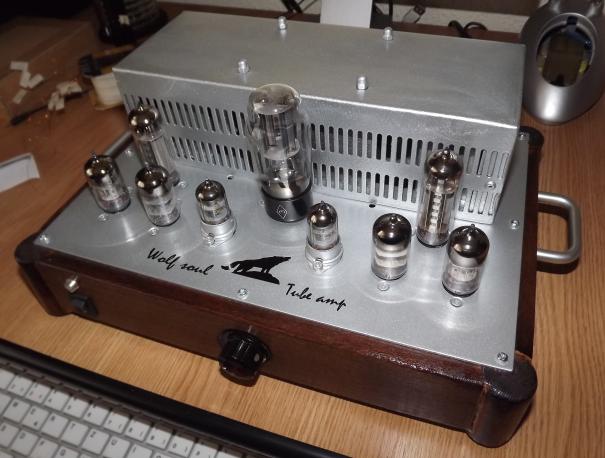

GU-17 RF double tetrode PP tube amplifier
Input tube 6Ð3П, splitter tube 6Ð2П, power tube ГУ-17 for each channel, OT calculated for 8.7K, using 7 cm2 E+I core, 5Ц4С rectifier, used for both channels and CLCRC filter for each channel.

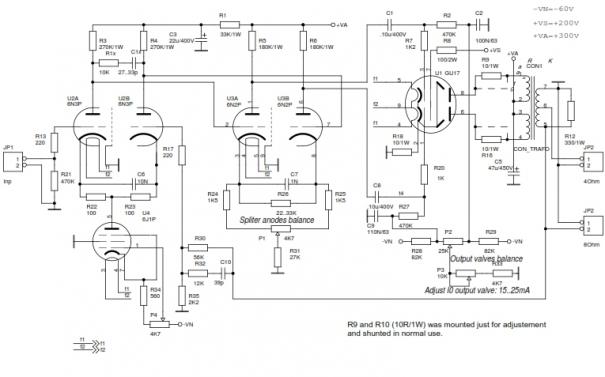

The schematic is not mine, I just modified it for my tubes.

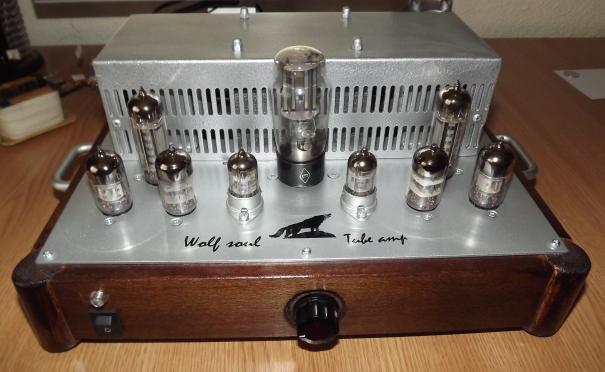

This amp is hand made.
The schematic is not mine, I just modified it for my tubes.
This amp is hand made.
