• Item: power amplifier
  • Type: 807 PSE
  • Posted: 12 January 2015
  • Builder: sagos
  • Country: Greece
  • Comments: 1

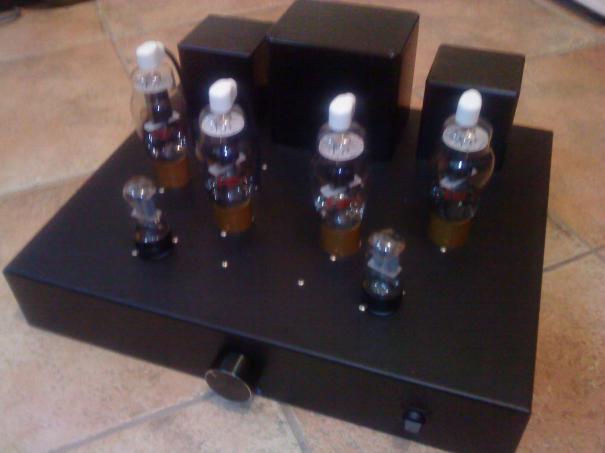

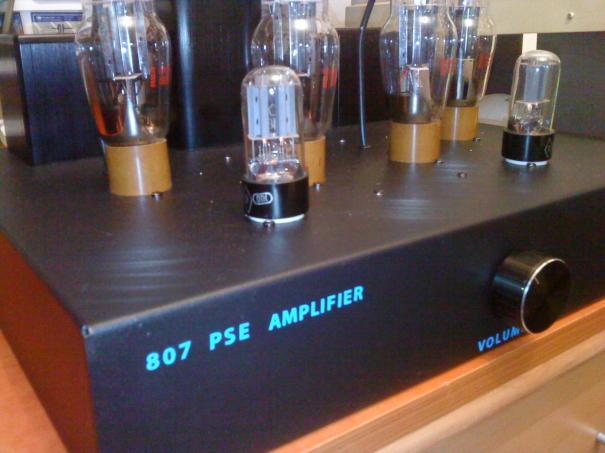

807 PARALLEL SINGLE ENDED

A classic design with no such ordinary topology.807 in parallel single ended topology.Power: 14w RMS (8OHM).
uses also 6SN7GT as preamplifier-driver.

Comments

  • goetz
  • 7 April 2016 at 05:32AM
  • Dear Sagos,

    thank you for presenting us your great work.

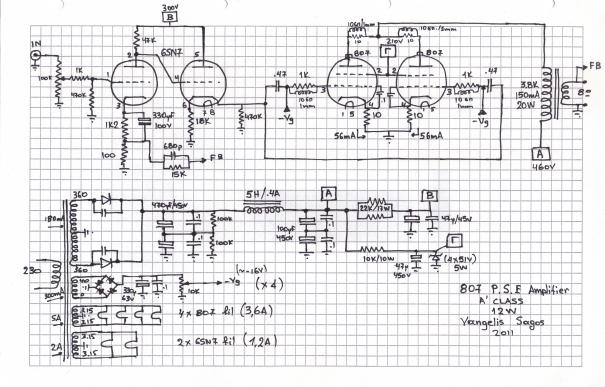

    On your schematic it is not to read which values of indution you did place at the grid and anode of the 807's.
    Your explanation is highly appreciated.
    Stunning idea !
