- Item: Hedphone amplifier
- Type: Marsh headphone amp from Linear audio vol.3
- Posted: 15 February 2015
- Builder: osscar
- Country: Latvia
- Comments: 1
DIY headphone amp
This is my first diy hedphone amplifier.
some details:

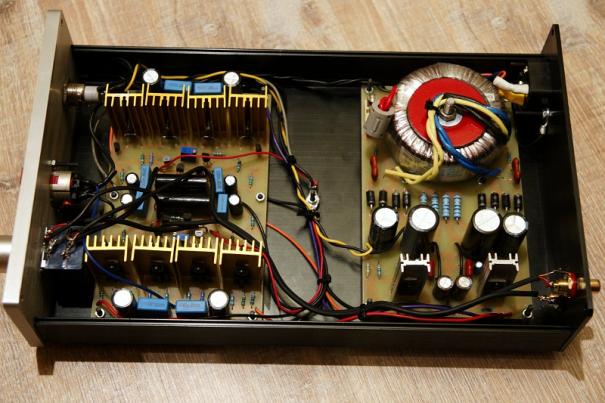

Direct coupled DCB1 based on N.Pass B1+ ALPS pot;
Marsh headphone amp with Jfet input and BJT outputs;
Standard LM regulator PSU with elna capacitors;
Elna + wima local decoupling capacitors;

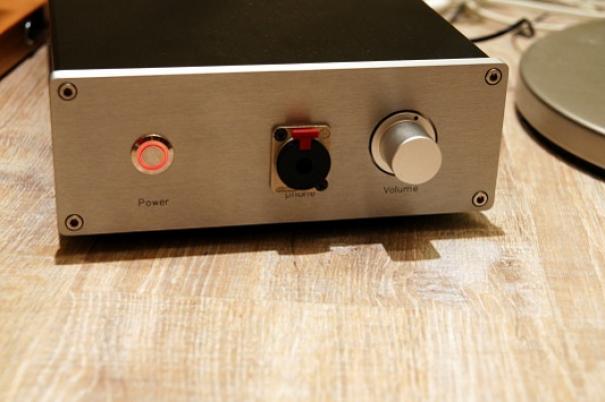

modified e-bay enclosure ( with LED pushbutton and neutrik jack)
some details:
Direct coupled DCB1 based on N.Pass B1+ ALPS pot;
Marsh headphone amp with Jfet input and BJT outputs;
Standard LM regulator PSU with elna capacitors;
Elna + wima local decoupling capacitors;
modified e-bay enclosure ( with LED pushbutton and neutrik jack)
Comments
- Noizy
- 1 September 2018 at 02:19PM
- You can buy a pcb from ebay for the ALPS pot which has wire connection via holes on either side, input and output. I like the amp.
