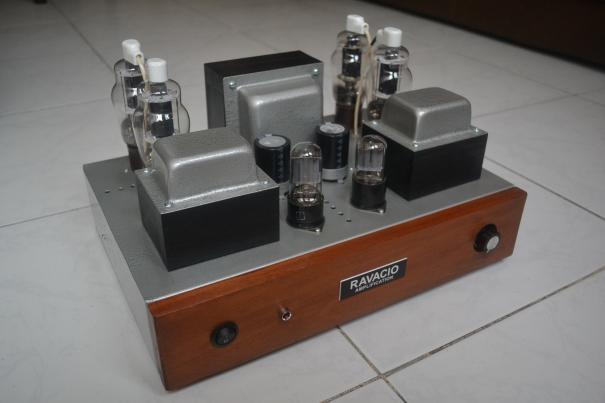

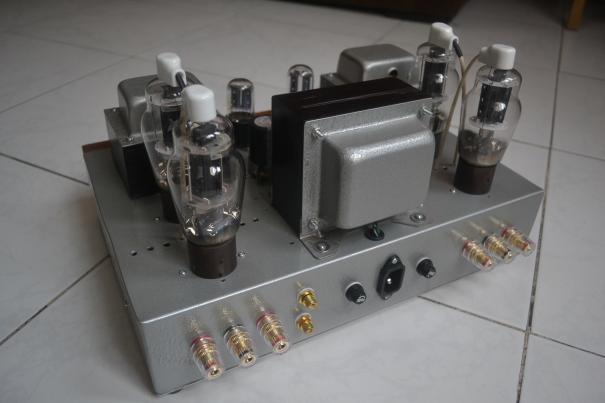

1625 Push-Pull driven by 6N9S-6N8S

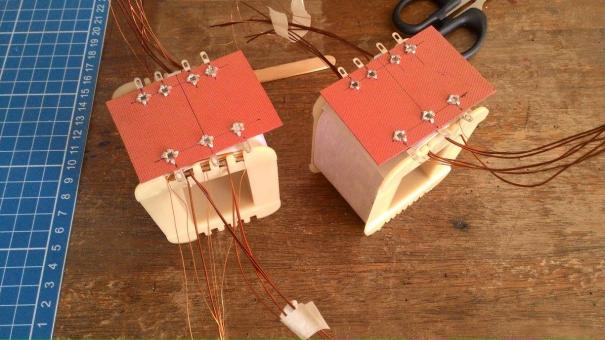

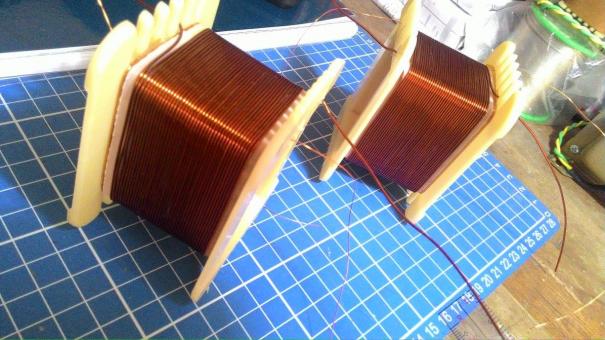

This is my first amp that I wound all the transformer including OPT and Choke.
The circuit design was pretty much similar to the OddWatt but instead of using 6l6gc, I have used 1625 which is very similar to 6L6 but uses 12.6V on the heater. The amp was driven by 6N9S-6N8S(Concertina phase inverter)
The circuit design was pretty much similar to the OddWatt but instead of using 6l6gc, I have used 1625 which is very similar to 6L6 but uses 12.6V on the heater. The amp was driven by 6N9S-6N8S(Concertina phase inverter)
