- Item: Invisible amplifier
- Type: TDA7492
- Posted: 20 February 2017
- Builder: DexM
- Country: Germany
- Comments: 0
"invisible amplifier"

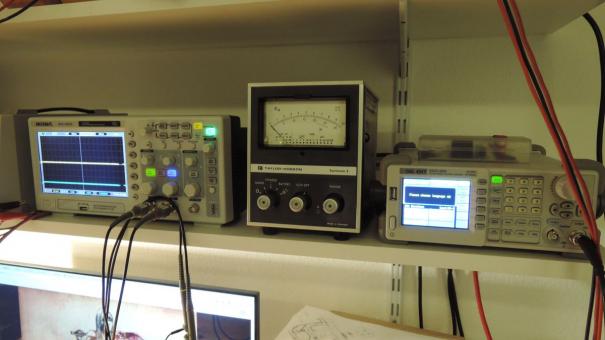

low budget office amplifier project. Invisible between other Measurements equipments ;)

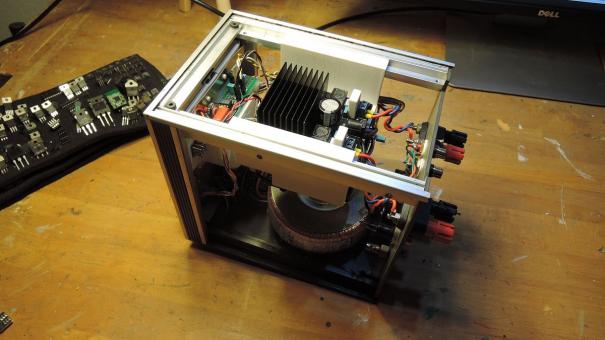

15€ TDA Board
17€ used toroidal transformer

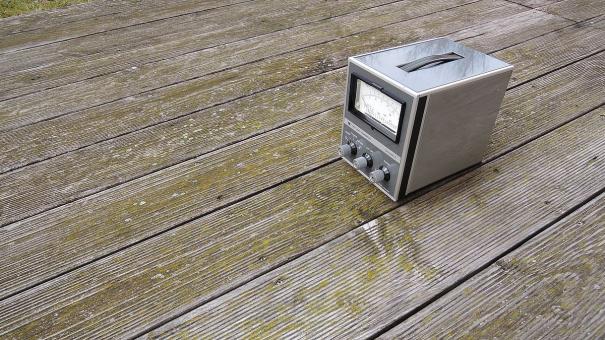

15€ old enclosure from a TAYLOR-HUDSON
~ 20€ connectors, capacitors, Fuses etc.

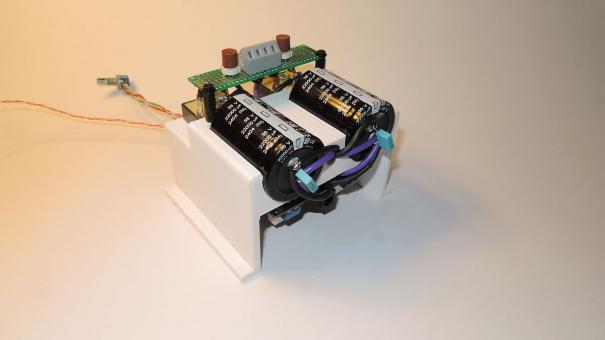

I designed a holder for PCB, Capacitors Fuses and so on and 3D printed it.

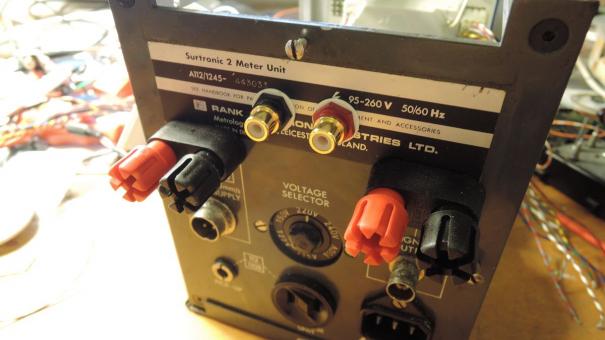

Fuseholder (primary) , 230V Connector , Knobs used from the old enclosure.
VU Meter function also works, with a small circuit i made.
A few more Pictures and ( german ) description you can found here:
http://meccanica.audio/2017/02/18/invisible-amplifier-2x50w-tda7492-class-d/
15€ TDA Board
17€ used toroidal transformer
15€ old enclosure from a TAYLOR-HUDSON
~ 20€ connectors, capacitors, Fuses etc.
I designed a holder for PCB, Capacitors Fuses and so on and 3D printed it.
Fuseholder (primary) , 230V Connector , Knobs used from the old enclosure.
VU Meter function also works, with a small circuit i made.
A few more Pictures and ( german ) description you can found here:
http://meccanica.audio/2017/02/18/invisible-amplifier-2x50w-tda7492-class-d/
