• Item: Stereo Power Amp
  • Type: 6BM8/PCL82 SEP
  • Posted: 14 June 2017
  • Builder: vvelt
  • Country: United States
  • Comments: 6

The Little Kicker

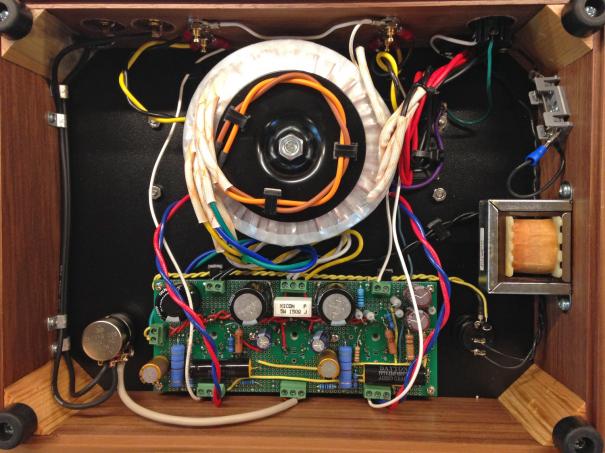

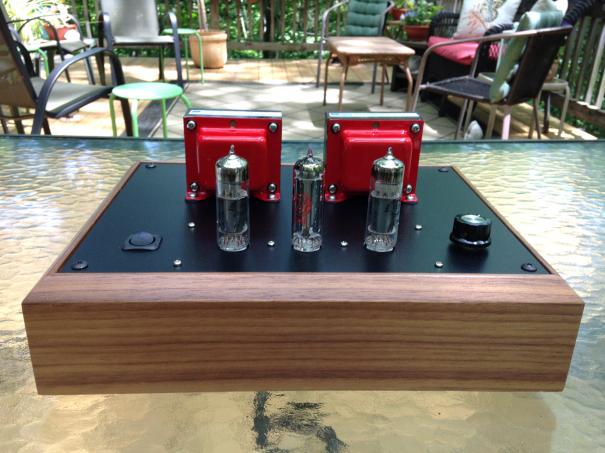

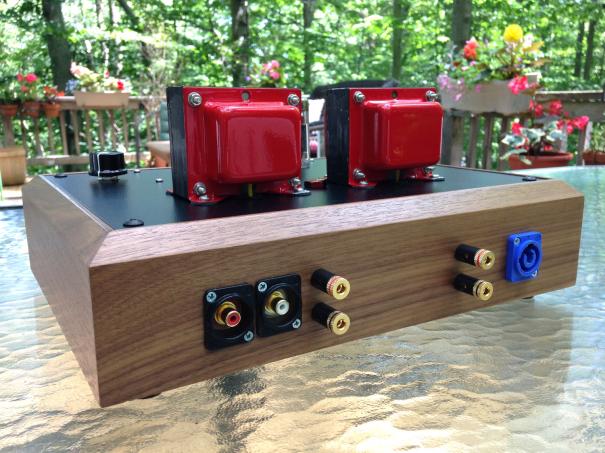

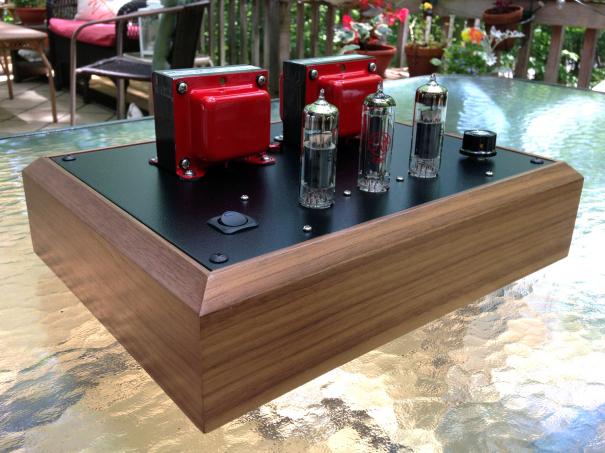

This little amp turned out to be lounder and punchier than I thought it would. This lead to experimenting with different output transformers and negative feedback before finishing it. It has plate-to-plate and global negative feedback. Audio tubes are Winged "C" 6F3P, and the rectifier is a JJ ez81. OPT's are from Musical Power Supplies, which I painted. The Antek power transformer is mounted underneath the top-plate of the Hammond chassis. The circuit is built on a blank project board I found on eBay.

Comments

  • Twang
  • 15 June 2017 at 02:02PM
  • Nicely done. schematic available?
  • vvelt
  • 15 June 2017 at 04:16PM
  • Hi, the schematic came from this forum thread:

    http://www.audiokarma.org/forums/index.php?threads/se-6v6.307681/

    It's the revised circuit for the 6BM8 down the page. I made up the CLCRC supply and added 33k from the OPT's to pin 8 (cathode). This helped improve the sound of these transformers. I first tried the amp using a variety of OPT's without the additional feedback and it performed great depending on the quality of the iron.
  • CrystalRF
  • 13 July 2017 at 03:15AM
  • Nice. How much did all of this end up costing you? Do you have an excel BOM? :-)
  • vvelt
  • 14 July 2017 at 04:33PM
  • Hi, I don't have a BOM per se. Some parts I had on hand but I spent about $150 on new parts and tubes, close to $100 on the chassis, and just over $100 for the OPT's. It always seems to add up quickly.
  • steinkare
  • 3 September 2017 at 10:20AM
  • Hello.

    Where did you buy the pcb?
    A very nice amp!

    Steinkare
  • vvelt
  • 18 September 2017 at 09:12AM
  • Here is a link to the pcb. The one I just bought is colored blue but is otherwise the same as pictured.http://www.ebay.com/itm/Universal-prototyping-PCB-for-Tube-Amplifier-Preamp-7Pin-8pin-9pin-Tube-Socket/171337457609
