- Item: 3-WAY ALL-JBL HORN SPEAKER
- Type: 1500AL + 2450SL-Be + radial horn + 045Be-1 + radial horn
- Posted: 31 January 2019
- Builder: marco_gea
- Country: United Kingdom
- Comments: 1
Richard's new speakers
* THIS PROJECT IS STILL WORK-IN-PROGRESS.
I WILL UPDATE THIS PAGE AS THE BUILD PROGRESSES *

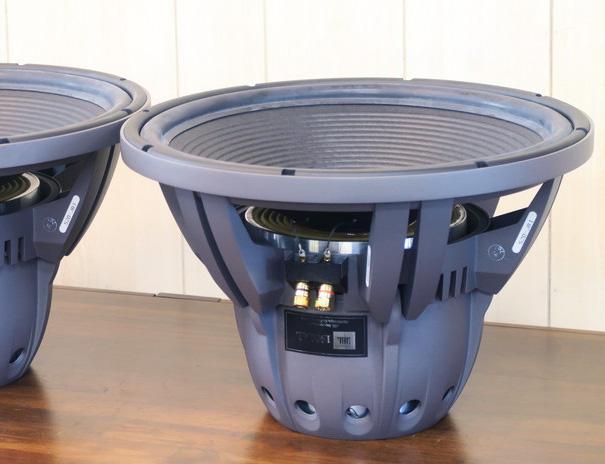

WOOFER: JBL 1500AL (15", AlNiCo magnet, cellulose diaphragm, SFG, double damper)

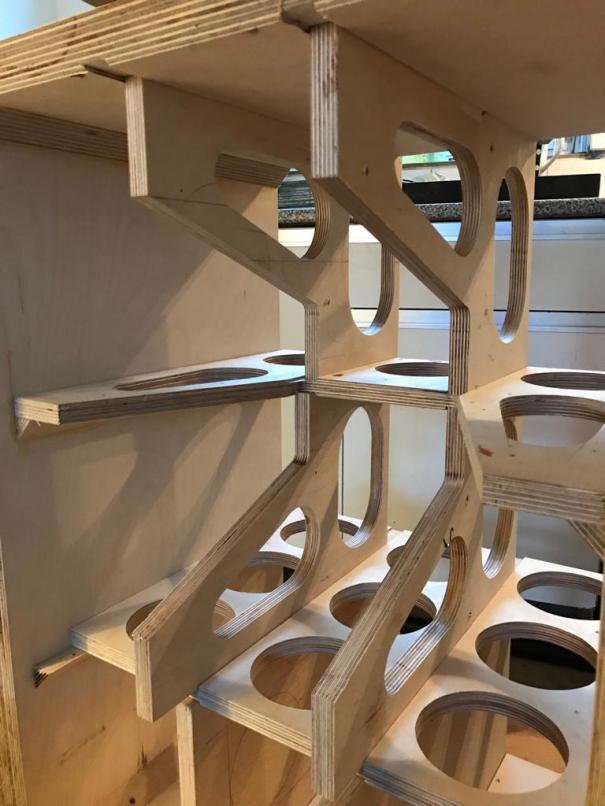

WOOFER BOX: Bass-Reflex, Vb = 4.5 cu.ft = 127 L, Fb = 30Hz. Made out of birch plywood, extensively braced.

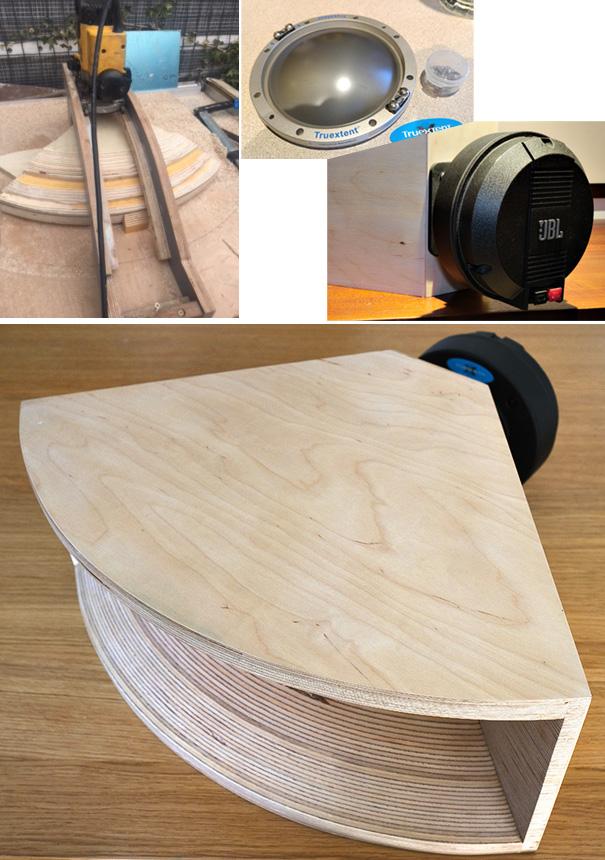

MID: JBL 2450SL (4"-diaphragm, 1.5"-exit 'throat-less' compression driver, Neodymium magnet, 'Coherent Wave' phase plug) + Truextent BeX4008 Beryllium diaphragm
MID HORN: My own design, inspired by Yuichi Arai's work.
Radial hypex expansion, Fc = 320Hz, T = 0.7. Made out of birch plywood, with CFRP throat adaptor.

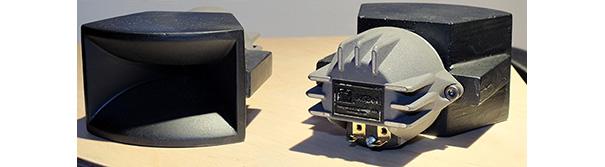

TWEETER: JBL 045Be-1 (1"-Beryllium diaphragm, 1cm-exit compression driver).
TWEETER HORN: My own design, inspired by Yuichi Arai's work.
Radial hypex expansion, Fc = 2kHz, T = 0.7. Made out of marble powder + resin.

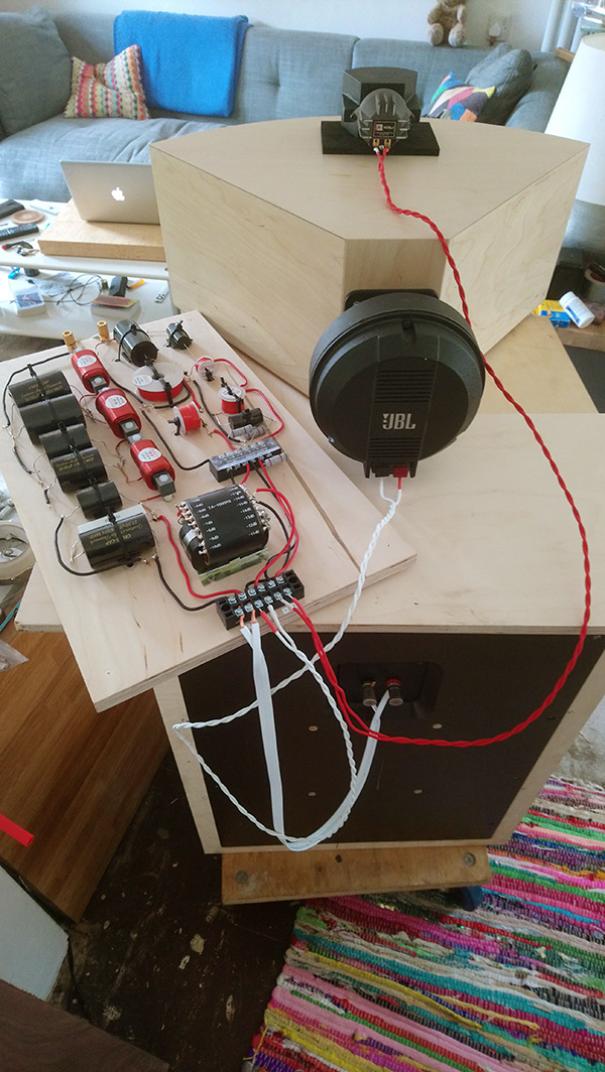

PASSIVE CROSSOVER: My own design, inspired by Shozo Kinoshita's work.
Crossover frequencies are 700Hz and 7kHz.
6th-order Woofer Low-Pass; 2nd-order Mid Band-Pass; 2nd-order Tweeter High-Pass.
Mundorf coils and Jantzen capacitors.
Mid attenuated with Someya autotransformer; Tweeter attenuated with Mundorf MOx resistors.
I WILL UPDATE THIS PAGE AS THE BUILD PROGRESSES *
WOOFER: JBL 1500AL (15", AlNiCo magnet, cellulose diaphragm, SFG, double damper)
WOOFER BOX: Bass-Reflex, Vb = 4.5 cu.ft = 127 L, Fb = 30Hz. Made out of birch plywood, extensively braced.
MID: JBL 2450SL (4"-diaphragm, 1.5"-exit 'throat-less' compression driver, Neodymium magnet, 'Coherent Wave' phase plug) + Truextent BeX4008 Beryllium diaphragm
MID HORN: My own design, inspired by Yuichi Arai's work.
Radial hypex expansion, Fc = 320Hz, T = 0.7. Made out of birch plywood, with CFRP throat adaptor.
TWEETER: JBL 045Be-1 (1"-Beryllium diaphragm, 1cm-exit compression driver).
TWEETER HORN: My own design, inspired by Yuichi Arai's work.
Radial hypex expansion, Fc = 2kHz, T = 0.7. Made out of marble powder + resin.
PASSIVE CROSSOVER: My own design, inspired by Shozo Kinoshita's work.
Crossover frequencies are 700Hz and 7kHz.
6th-order Woofer Low-Pass; 2nd-order Mid Band-Pass; 2nd-order Tweeter High-Pass.
Mundorf coils and Jantzen capacitors.
Mid attenuated with Someya autotransformer; Tweeter attenuated with Mundorf MOx resistors.
