- Item: Power Amplifier
- Type: Pass Labs Aleph 2
- Posted: 4 February 2011
- Builder: Bakmeel
- Country: Netherlands
- Comments: 6
The Aleph 2 Project
After 5 years collecting parts, machining, pre-fitting and painting this project was finalised in 2009.
The electrical design is taken directly from the Pass Labs Aleph 2 schematics without modification, except the power supply.
The power supply (2 x 55V) is unregulated:
- 1 kVA toroid transformer
- 130A Schottky Diode Rectifier

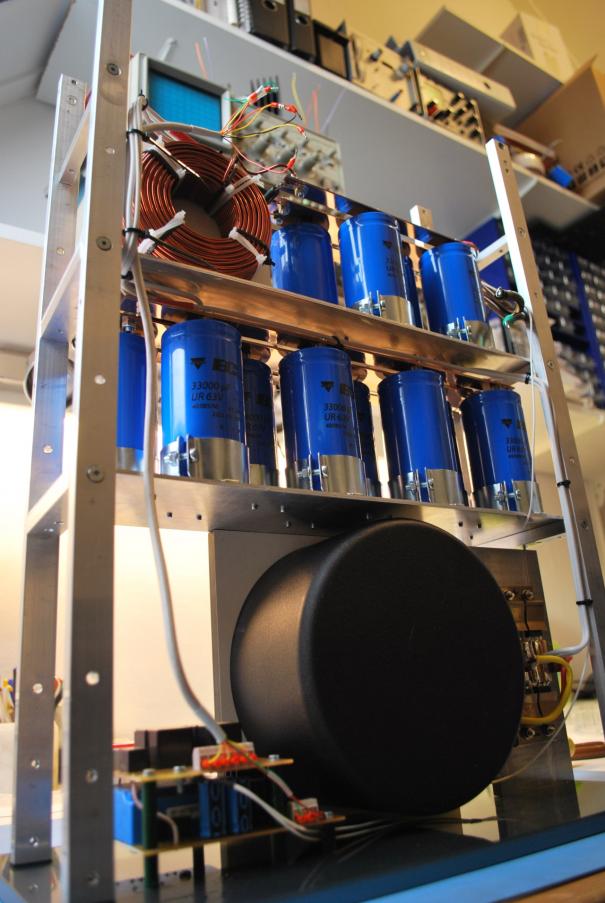

- 132000uF - 2.7mH - 66000uF CLC filter on each rail.
- The inductors in the voltage rails are air-core, but magnetically coupled to create a "soft" common mode filter.
Under 500W load, the 50Hz ripple is below 10mV

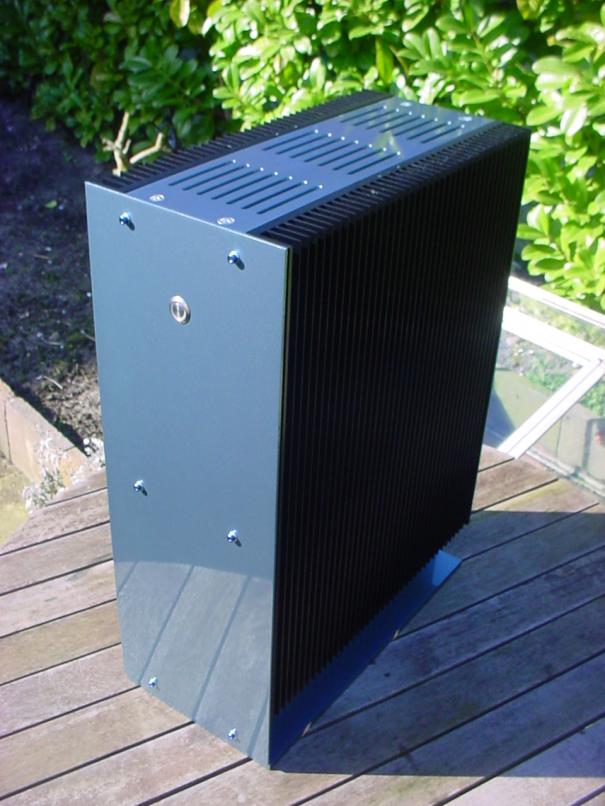

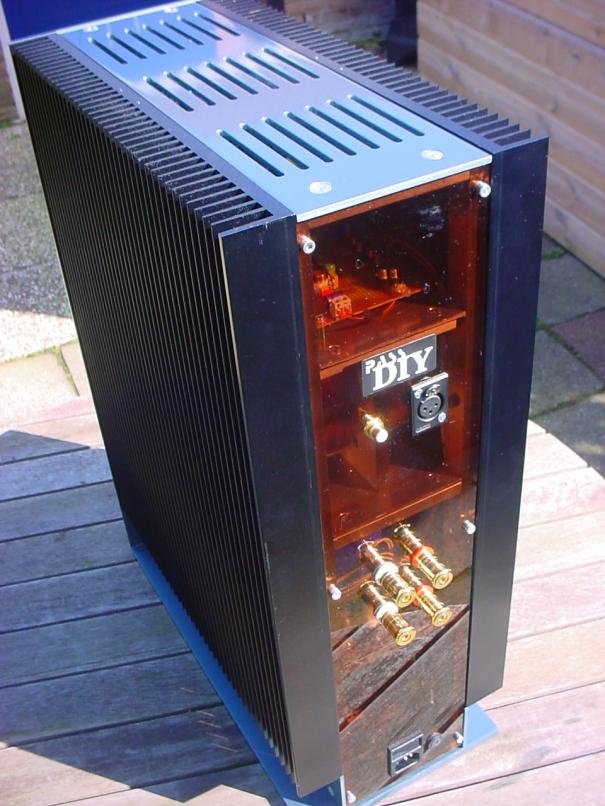

The heatsinks are sized to dissipate 330W in free convection (no fans) with a temperature rise of less than 20 degrees above ambient.

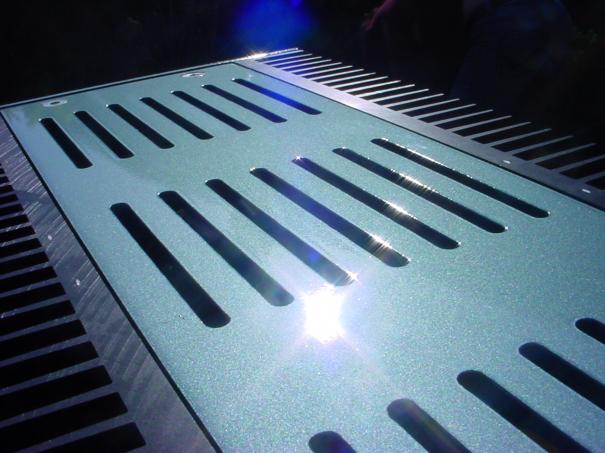

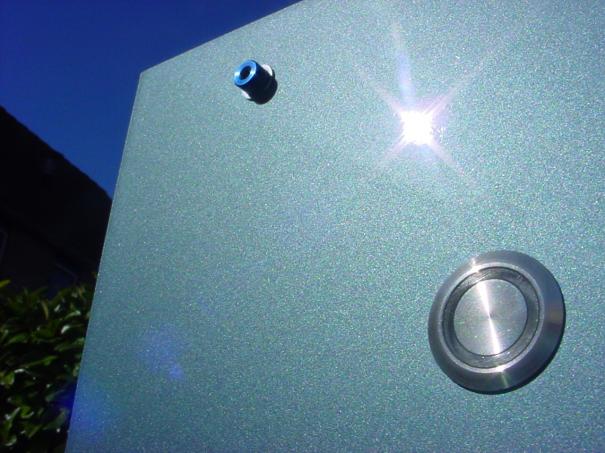

The painting was done by an industrial paintshop, with BMW metallic paint.
The sound is -in one word- great!
The electrical design is taken directly from the Pass Labs Aleph 2 schematics without modification, except the power supply.
The power supply (2 x 55V) is unregulated:
- 1 kVA toroid transformer
- 130A Schottky Diode Rectifier
- 132000uF - 2.7mH - 66000uF CLC filter on each rail.
- The inductors in the voltage rails are air-core, but magnetically coupled to create a "soft" common mode filter.
Under 500W load, the 50Hz ripple is below 10mV
The heatsinks are sized to dissipate 330W in free convection (no fans) with a temperature rise of less than 20 degrees above ambient.
The painting was done by an industrial paintshop, with BMW metallic paint.
The sound is -in one word- great!
