- Item: Single Ended Integrated
- Type: Direct Heated 6A3 Triode
- Posted: 1 May 2012
- Builder: komkris2000
- Country: Indonesia
- Comments: 1
DHT6A3

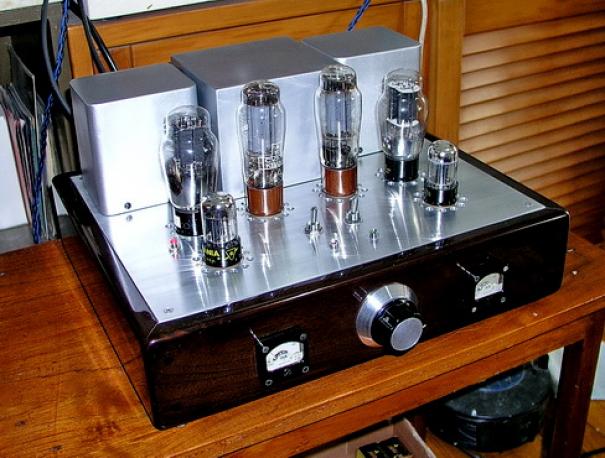

I build this amp for my eldest offspring in Brisbane. Evaluating several tube types and amp topologies, I could not deny that the direct heated triodes (DHT) of the 2A3 family are the winners in sound character.
My choice thus fell on the 6A3 of which I had ample stock, they are a derivative of the 2A3 but with 6.3 Volts heaters. This enable me to build a amp with flexibility of a 2.5V or 6.3V heaters accommodating either the 2A3 or 6A3 tube types. With a tube converter the 6B4G - a 6A3 with octal sockets can also be used.
The amp is a "semi monoblock in one chassis", sharing 1 big mains tranny, dedicated chokes for each channel, separated heater supply of 2.5, 6.3 for the end tubes, separated heater supply of 6.3 easily converted to 12.6 for the line & drivers of 6SN7.
With the "semi monoblock" concept, the amp easily drives the low sensitivity 87dB Proac bookshelfs - R1S/R1SC/Tablet series and the 82Db Rogers LS35A family.
The amp weight a whopping 24Kg and is extremely stable.

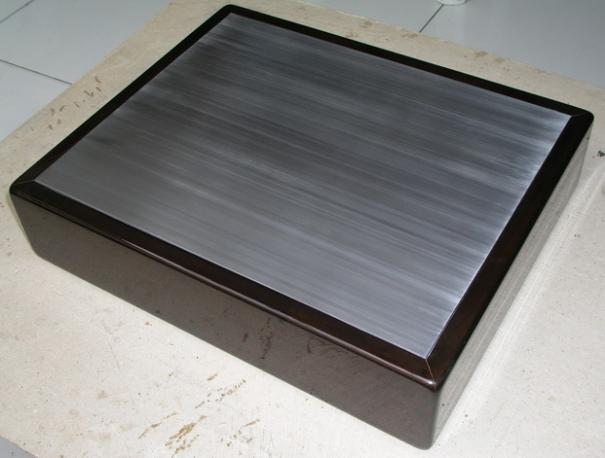

Chassis is made of: wood cabinet with polyutherane finish, aluminium 3mm topplate handbrushed hairline finish

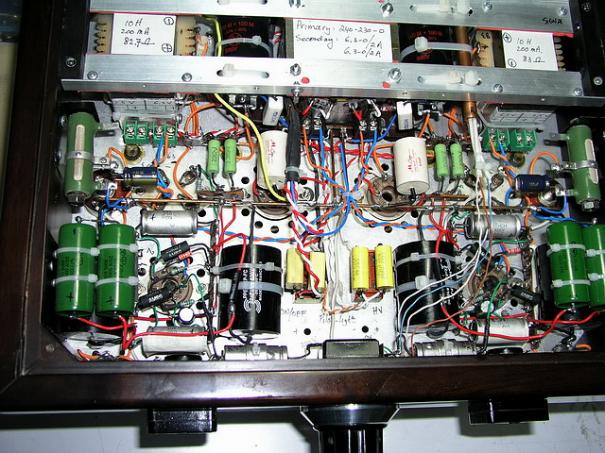

Parts: Custom wound Mains Transformer, custom wound chokes 10H/100mA, Lundahl 1664/100mA Output transformers, MKP Solen, JJ Electrolytics, Russian Paper in Oil K75-10 and MBM 0.1uF/1000uF, Cardas posts, Yamamoto teflon wire, Alps Black Beauty volume pot, ARMG and Kiwame resistors. Military Russian current meters

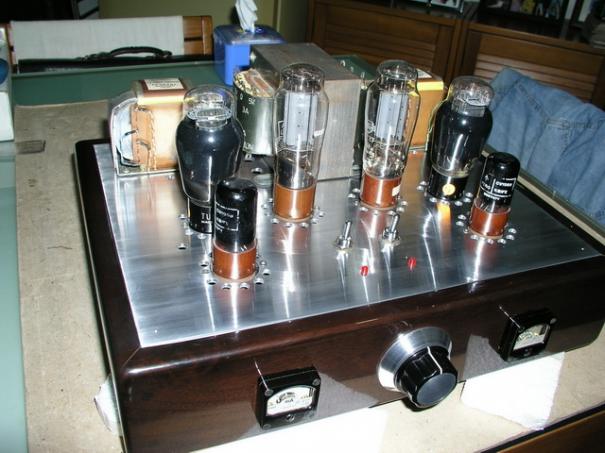

Tubes used: NOS Tungsol 6A3 endtubes , Mullard GZ37 rectifier tubes , Sylvania 6SN7 line & drivers
Paul Yahya
www.komkris2000.webs.com
My choice thus fell on the 6A3 of which I had ample stock, they are a derivative of the 2A3 but with 6.3 Volts heaters. This enable me to build a amp with flexibility of a 2.5V or 6.3V heaters accommodating either the 2A3 or 6A3 tube types. With a tube converter the 6B4G - a 6A3 with octal sockets can also be used.
The amp is a "semi monoblock in one chassis", sharing 1 big mains tranny, dedicated chokes for each channel, separated heater supply of 2.5, 6.3 for the end tubes, separated heater supply of 6.3 easily converted to 12.6 for the line & drivers of 6SN7.
With the "semi monoblock" concept, the amp easily drives the low sensitivity 87dB Proac bookshelfs - R1S/R1SC/Tablet series and the 82Db Rogers LS35A family.
The amp weight a whopping 24Kg and is extremely stable.
Chassis is made of: wood cabinet with polyutherane finish, aluminium 3mm topplate handbrushed hairline finish
Parts: Custom wound Mains Transformer, custom wound chokes 10H/100mA, Lundahl 1664/100mA Output transformers, MKP Solen, JJ Electrolytics, Russian Paper in Oil K75-10 and MBM 0.1uF/1000uF, Cardas posts, Yamamoto teflon wire, Alps Black Beauty volume pot, ARMG and Kiwame resistors. Military Russian current meters
Tubes used: NOS Tungsol 6A3 endtubes , Mullard GZ37 rectifier tubes , Sylvania 6SN7 line & drivers
Paul Yahya
www.komkris2000.webs.com
