- Item: Svetlana KT88 SE
- Type: Single Ended
- Posted: 13 January 2013
- Builder: Tobbe
- Country: Germany
- Comments: 3

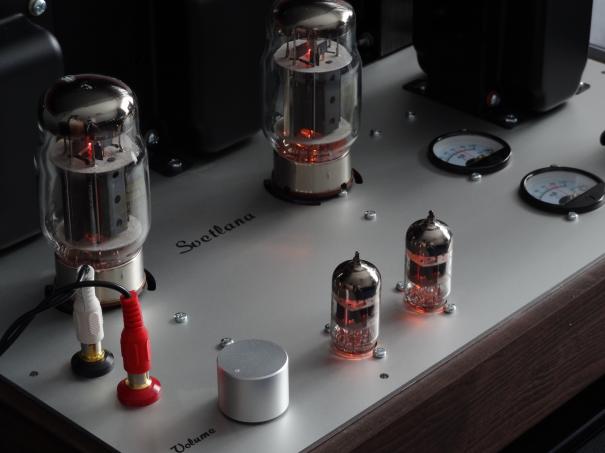

Svetlana

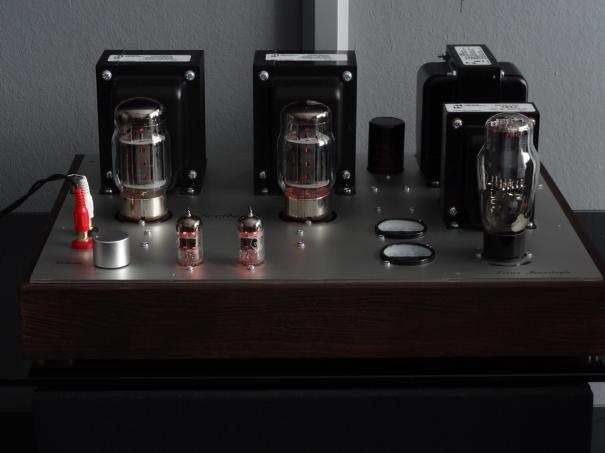

My first Single Ended Tube Amp.
2x KT88

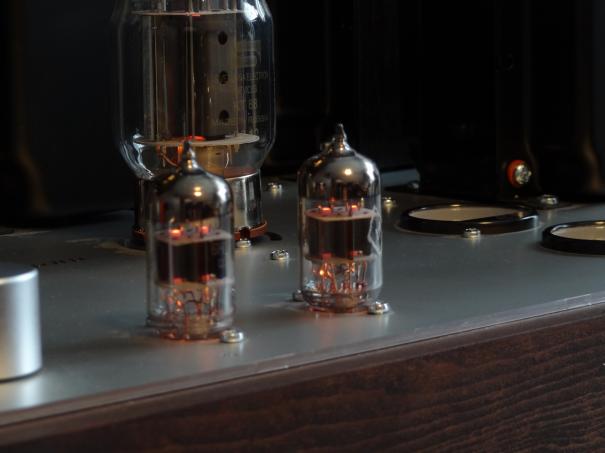

2x 6N1P-EV

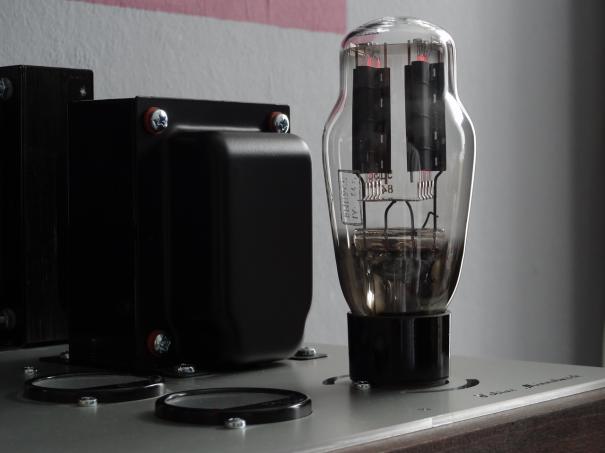

1x 5U4GB
Transformers are from Hammond.
It sounds very clean and nice, i like the amplifier very much.
Thanks for watching!
2x KT88
2x 6N1P-EV
1x 5U4GB
Transformers are from Hammond.
It sounds very clean and nice, i like the amplifier very much.
Thanks for watching!
Comments
- Elite
- 13 January 2013 at 02:21PM
- I am an audiophile and designer could you possibly E-mail a parts list prints info to make my own and your amp looks soooo cool thanks
Michael Agee
spiderwebx12@yahoo.com
- mmbdp
- 13 January 2013 at 02:59PM
- Wonderful. Could you give more details, please?
Thanks,
Marcello (from Brazil)
- Tobbe
- 14 January 2013 at 09:43AM
- Hi,
This amp based on this circuit:
http://www.diyaudio.com/forums/tubes-valves/149614-stereo-se-kt88-build-abdellah-diyaudioprojects-design.html
I also used all parts from this circuit to maintain the characteristic sound of this amp.

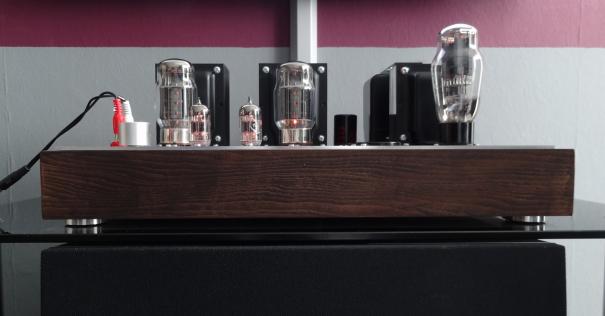

The wooden frame is self-made. It is just made out of 4 x 45 degree angled pieces. For the brown finish I used wood stain.
The chassis is aluminum, i created a plan which is realized by a CNC machine.
Best regards,
Tobbe
