• Item: Push-pull Class A mono amplifiers
  • Type: Pass F5 turbo
  • Posted: 3 May 2013
  • Builder: rookakoma
  • Country: Hungary
  • Comments: 2

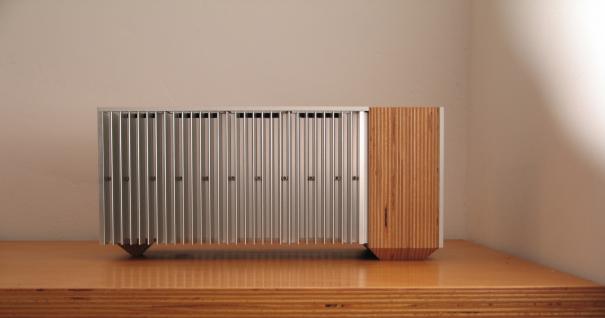

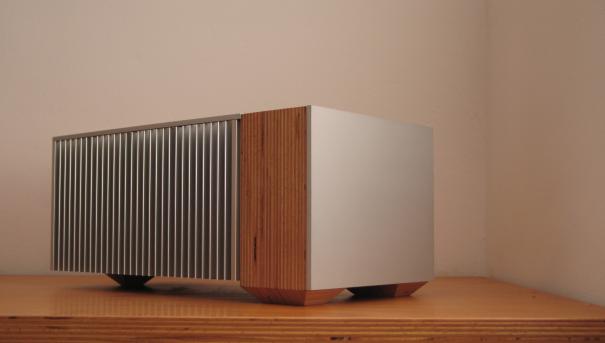

Pass F5 turbo

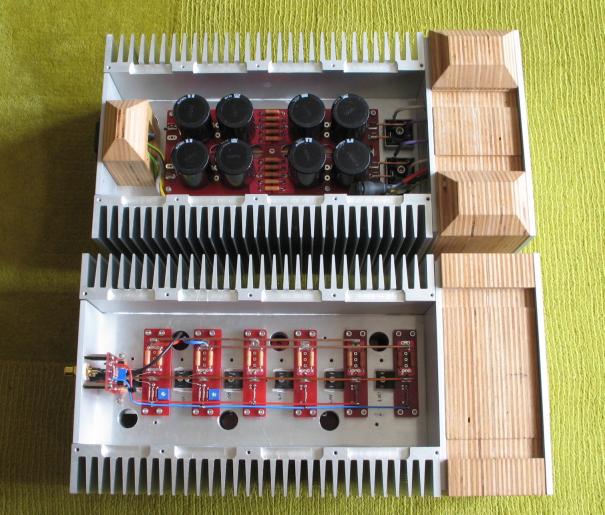

This is very simple two stage complementary circuit with JFET input and MOSFET output stages.

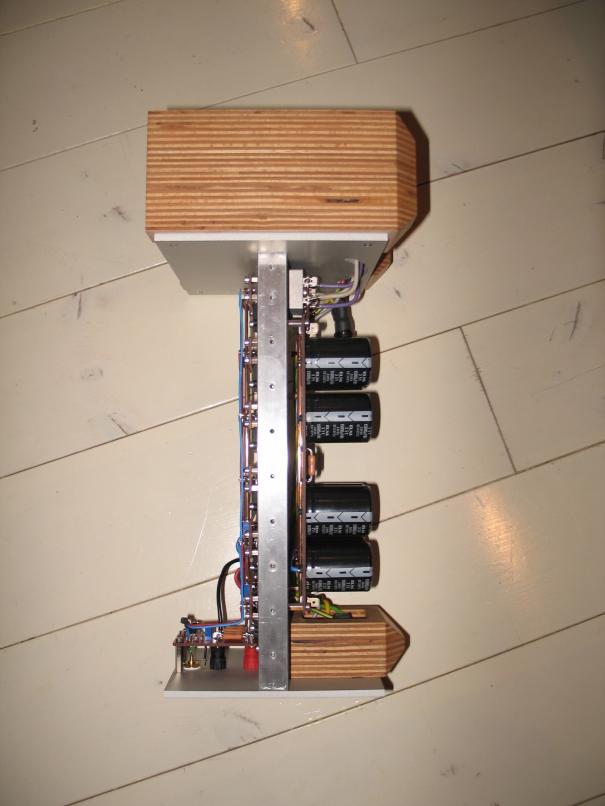

Easily configurable to V1 or V2, thanks to the modular design.
15kg each.

Special thanks to Mr. Pass!
