- Item: Paradise phonostage
- Type: LO MC.
- Posted: 27 July 2013
- Builder: sq225917
- Country: United Kingdom
- Comments: 3
Paradise
This is the third build I made using the diyaudio.com paradise phonostage group buy pcbs and parts.

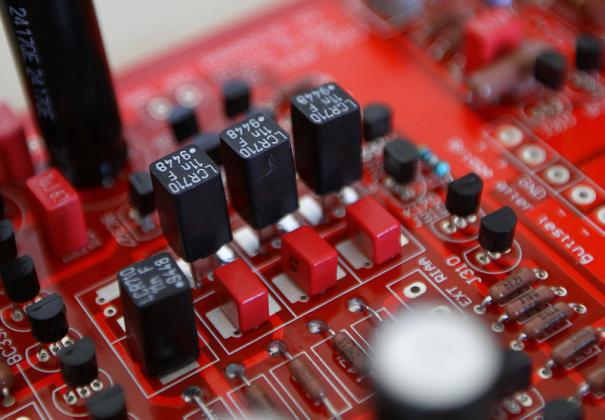

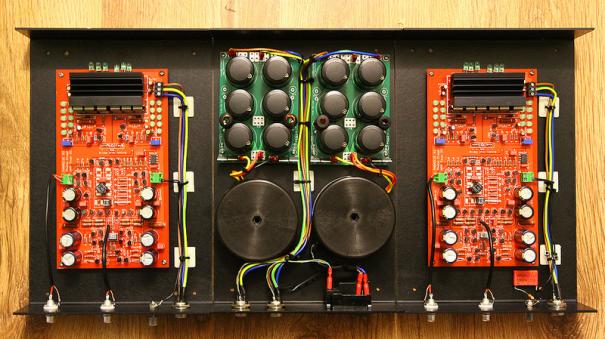

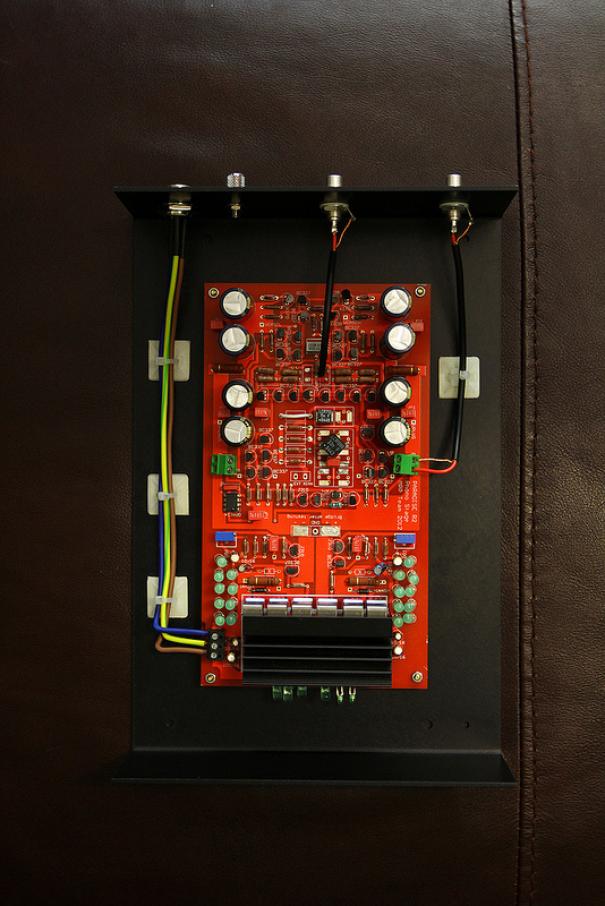

It's a 3 box, dual mono, phonostage with a bipolar shunt feeding each channel. The design is all discrete, apart from the op-amp that manages the offset servo. All transistors are matched to better than 1% across both channels and intra-channel. All resistors are .1% parts and the caps in the RIAA stage are matched to better than .1%
It's a 3 box, dual mono, phonostage with a bipolar shunt feeding each channel. The design is all discrete, apart from the op-amp that manages the offset servo. All transistors are matched to better than 1% across both channels and intra-channel. All resistors are .1% parts and the caps in the RIAA stage are matched to better than .1%
Comments
- Stixx
- 5 August 2013 at 12:37PM
- Very clean build!
- Adam
- 20 September 2013 at 10:41AM
- Very tidy build, how does it sound?
- sq225917
- 13 November 2013 at 11:44AM
- It sounds way better than any bit of DIY should. So far I've built another 5 for friends and am about to start on the 6th.
Pretty much everyone who hears it ends up wanting one.
