- Item: MyRef FE reference amplifier
- Type: LM3886 amplifier
- Posted: 28 December 2013
- Builder: No. 4
- Country: United States
- Comments: 2
MyRef FE power amplifier
-MyRef FE RC PCBs (courtesy of ClaveFremen on diyaudio)

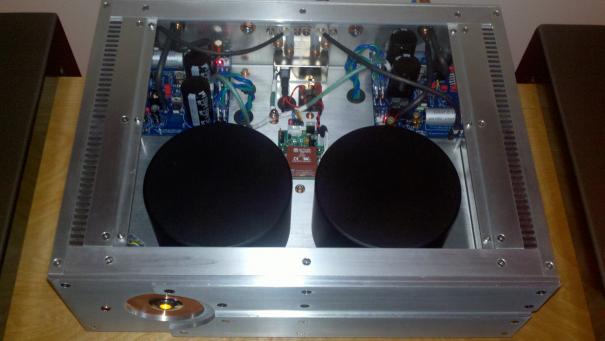

-Antek AS3222 transformers
-Antek transformer covers
-Cardas CCBP-S unplated copper binding posts
-Connex 68140 RCAs with "custom" isolation covers
-AMB e24 switch driver
-bulgin lighted switch

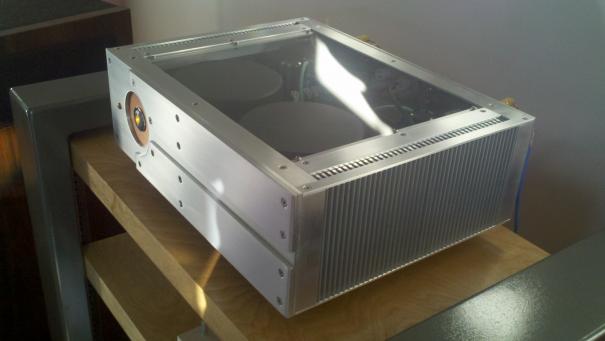

-Heatsink USA heatsinks
-high quality stripped RG6 output wire
-solid silver input wire dressed with teflon, cotton, and heatshrink
-Jantzen silver-Z-caps 1uf

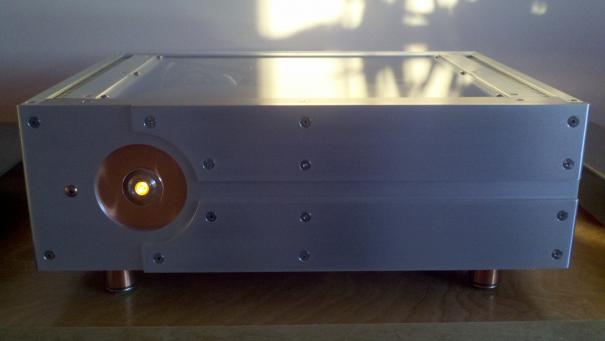

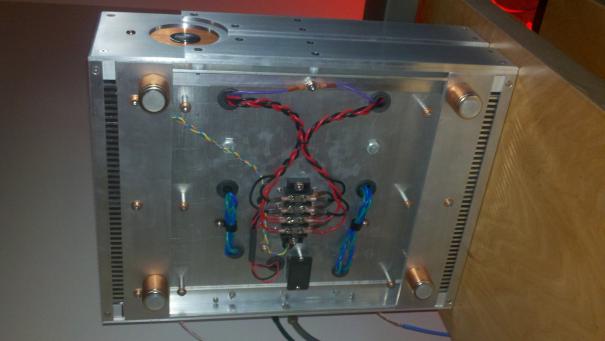

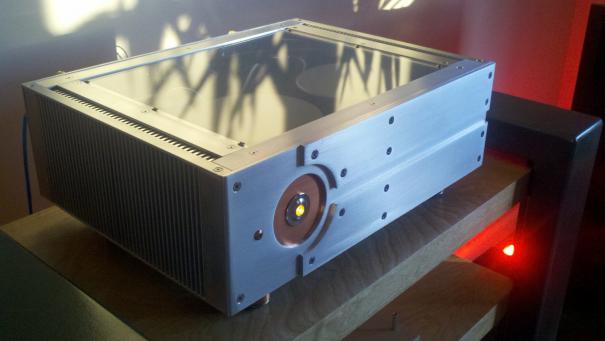

-Hand made aluminum enclosure with all alloy and stainless hardware
-Antek AS3222 transformers
-Antek transformer covers
-Cardas CCBP-S unplated copper binding posts
-Connex 68140 RCAs with "custom" isolation covers
-AMB e24 switch driver
-bulgin lighted switch
-Heatsink USA heatsinks
-high quality stripped RG6 output wire
-solid silver input wire dressed with teflon, cotton, and heatshrink
-Jantzen silver-Z-caps 1uf
-Hand made aluminum enclosure with all alloy and stainless hardware
Comments
- woodgeek
- 23 January 2014 at 11:05PM
- Wow, that looks sweet!
Kudos on the chassis. How long did that work take? I wish someone offered a chassis like that commercially.
I just ordered boards from Clave, am looking for trafos and deciding on an enclosure. You set the mark high!
- No. 4
- 28 January 2014 at 05:01PM
- Thank you! Im not sure exactly how long it took to complete because I changed so much about the layout and various components along the way. The chassis construction took about a month or so of spare moments to complete. All said it was well worth the effort.
