• Item: Speaker Refurbish
  • Type: Bose 901 Series III
  • Posted: 4 August 2010
  • Builder: Wardsweb
  • Country: United States
  • Comments: 2

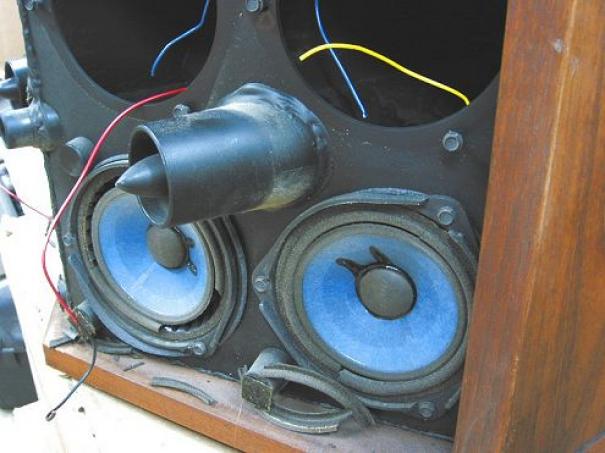

I started with a pair of 901 III that were intact but tired. The drivers all needed new foam. I removed all the drivers and cleaned all the old foam off.

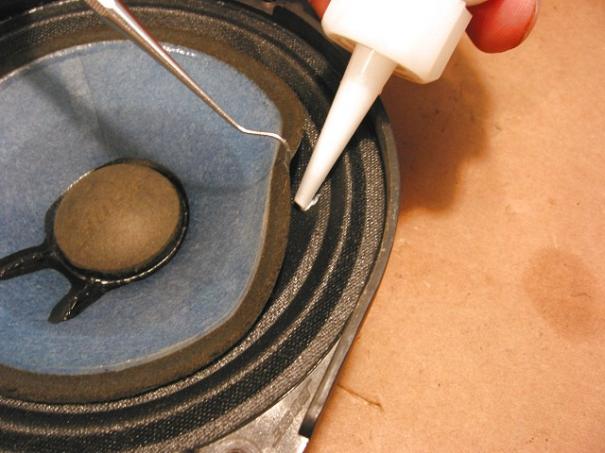

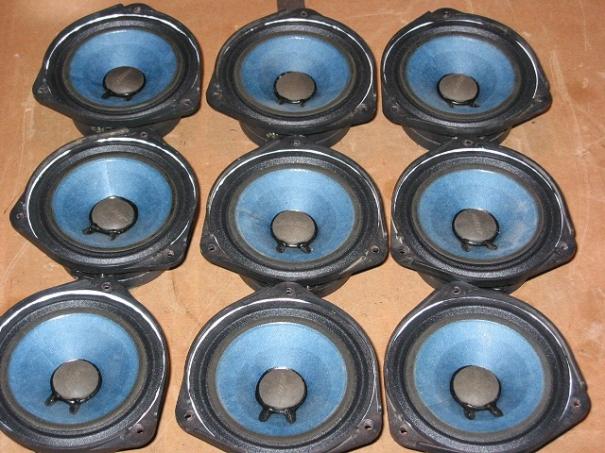

This left a nice clean surface for the new cloth edging. I went with the newer "V-Roll" cloth surround. I first glued the surround to the underside of the cone. After letting that dry, I glued the outside edge to the frame.

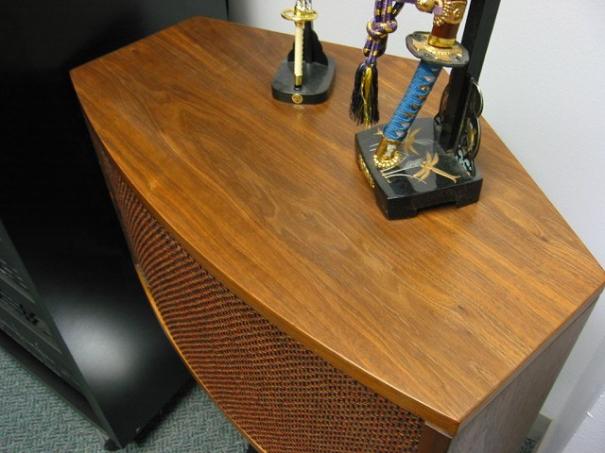

The cabinets needed some attention too.

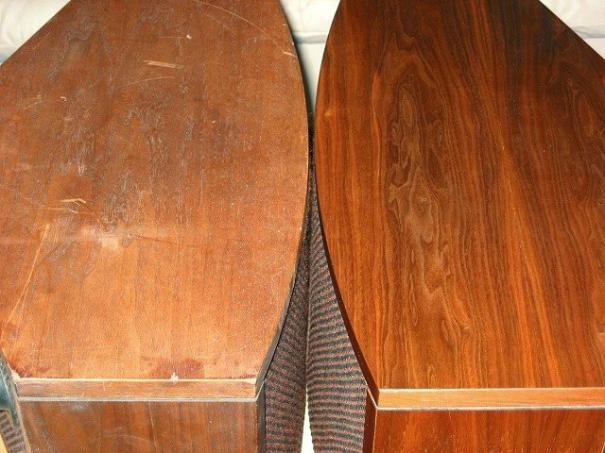

So some hand sanding and a few coats of DEFT wood finish.


  • yoey
  • 14 August 2014 at 12:15PM
  • Great job, I wonder, What is the ohms of each driver and how are connected?
  • Chris
  • 25 October 2014 at 01:38AM
  • Yoey
    These ARE NOT mine. But, provided they're holding nominal specs, SHOULD e in the neighborhood of about .9 Ohms Per driver(wired in series)
