• Item: DIY Synergy Horns
  • Type: 3 way DIY Synergy style horns using 8" woofers, 3" mids and 1" compression tweeter.
  • Posted: 15 April 2014
  • Builder: SpeakerScott
  • Country: United States
  • Comments: 4

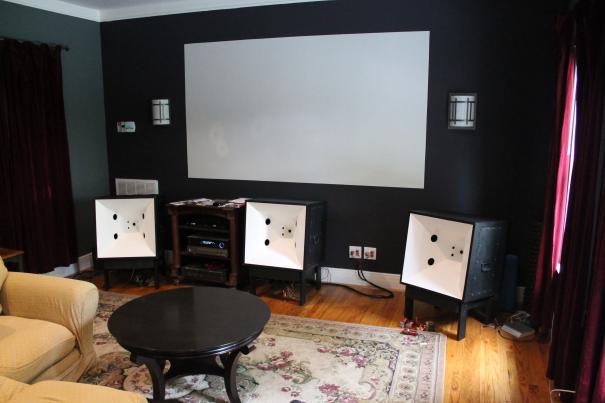

DIY 3-Way Synergy-style horns...

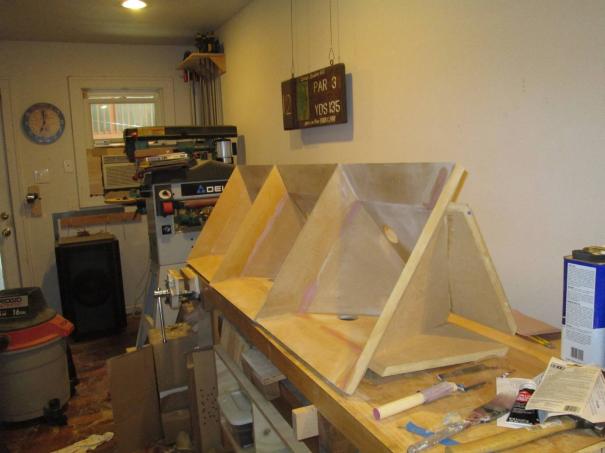

I built these speakers of the course of late 2012 through September 2013. I had 4 or 5 prototypes along the way before I finally figured out the most important aspects.

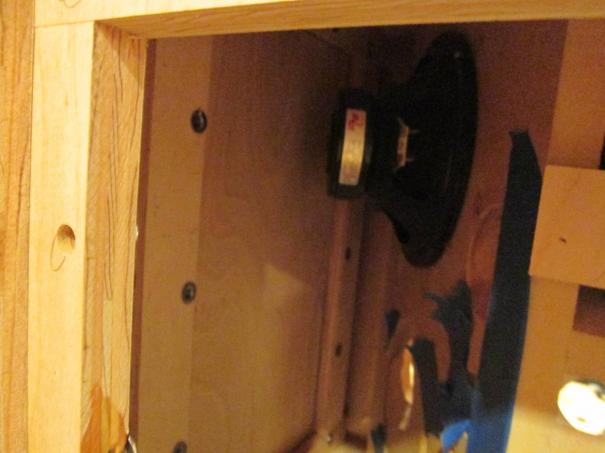

Each speaker has 4 Dayton Classic 8", 8ohm woofers, paper cone, rubber surround. They are in roughly 80L of sealed volume...

The mid-ranges are 4 Dayton designer series 3" full range/mid-woofer drivers. Each one is in a small sealed chamber made from a 3" PVC plumbing end cap.

The tweeter is a PRV D290B 1" compression driver.

Finish is Target coatings spray lacquers and Duratex.

Each completed speaker ways about 85 lbs.

To describe the sound the only words I have are this: It's the detail of electrostatics, tonal control of a full range, with the musicality of a min-monitor, precision imaging of headphones without the in your head soundtrack problem. Add in all the dynamics of a horn loaded system without the honk or listening distance requirements...and that's about what you get. You literally can't stop listening.
