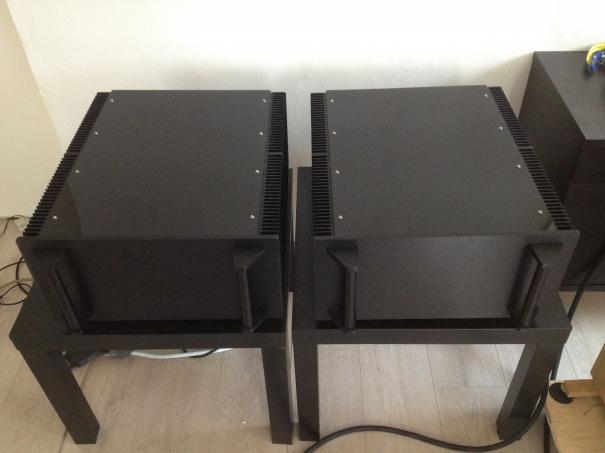

This is 2 4 channel power amplifiers that will power my 4way active loudspeakers.

All components are from Ground Sound.

In each block is 2times 750w/8ohm H-amps and 2times 300w/8ohm a/b amps. Custom Noratel transformers, and Ground Sound power supply.

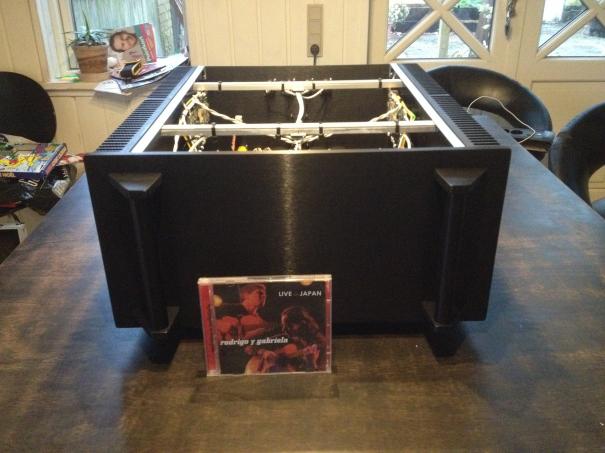

Cabinets are from hifi2000.

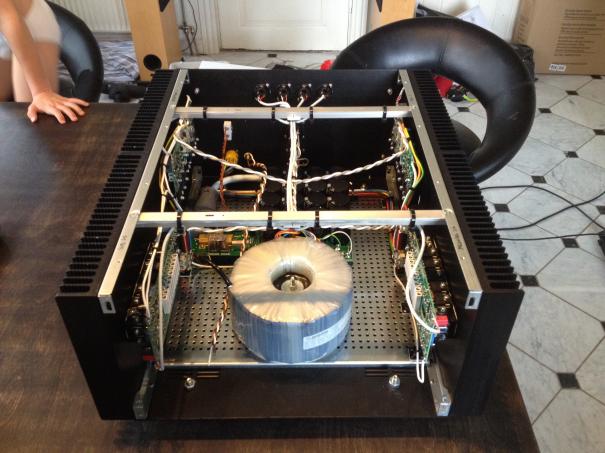

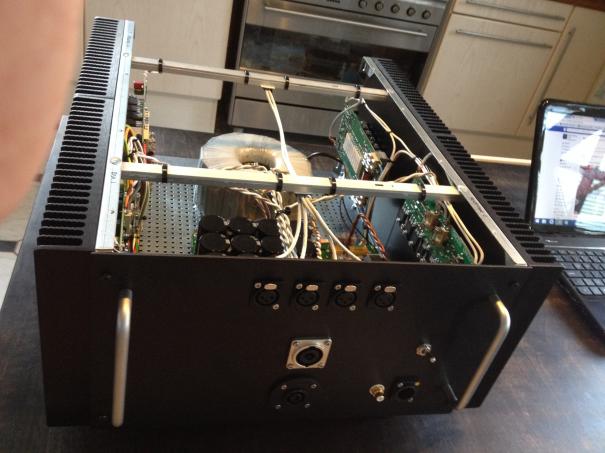

All power wires are in the bottom, speaker in the middel at signal i the top, to seperate it as mutch as possibel.

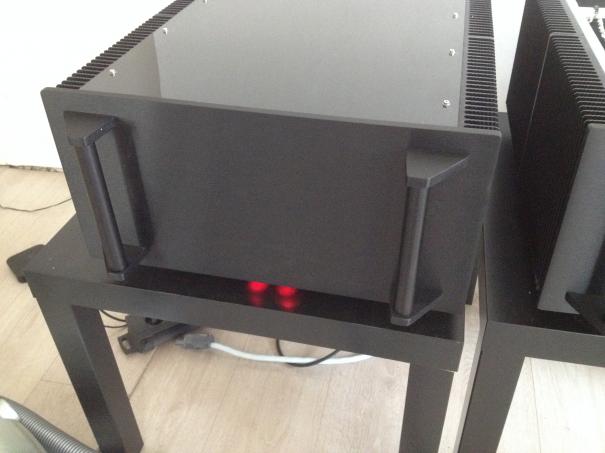

The diodes that indicate it´s on, is in the bottom dirrektly behind the front plate, I don´t like when diodes blind me when I´m listening to music. And theese big boys will be the only think between my speakers.



Total output is 2,1Kw/8ohm and they are capable of 2ohm loads if needed.
