TB-3/1000 power amplifier

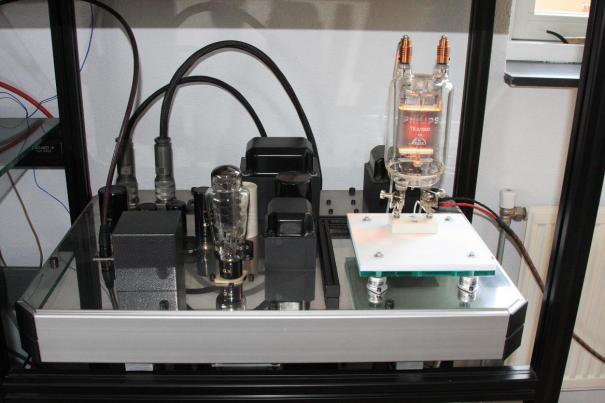

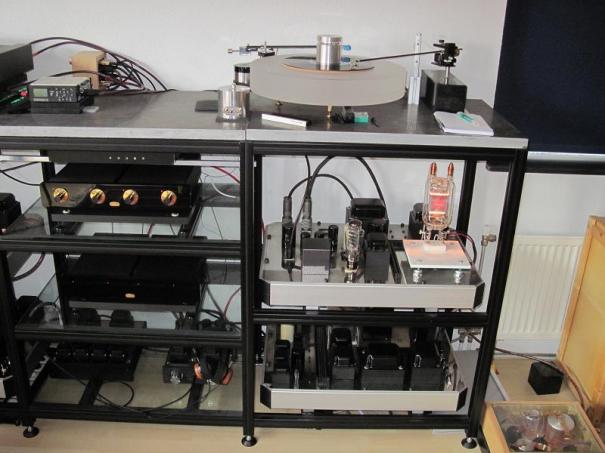

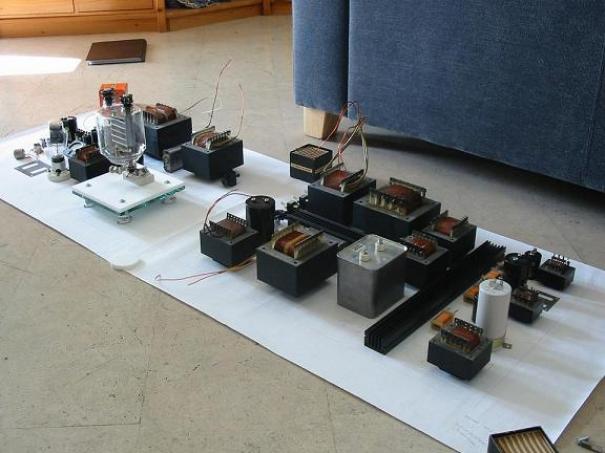

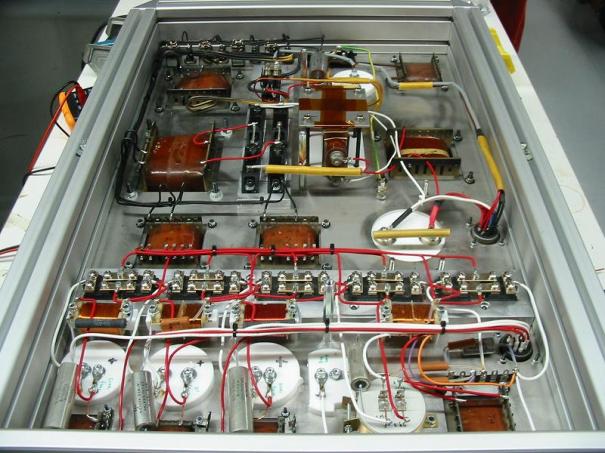

The power amplifiers in my set are based on the TB-3/1000 transmitting triode. This is comperable to the American 833A. The complete audio-line consists of: input transformer - 6SN7 - interstage - 300B - interstage - TB-3/1000 - output transformer. Echt power amplifier (monoblock) has its dedicated power supply below it in the audiorack. In total the amp does weigh 350 kgs.

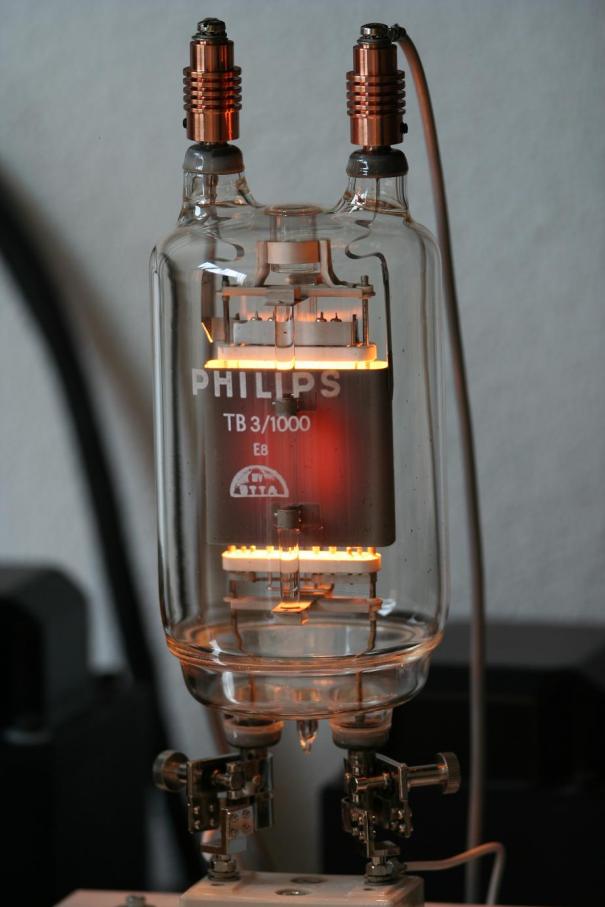

At 1400 volt on the anode you will have 100 Watt single-ended Class A2 (triode is positive grid driven). The anode becoms quite redhot; this is normal and even signals proper functioning.
