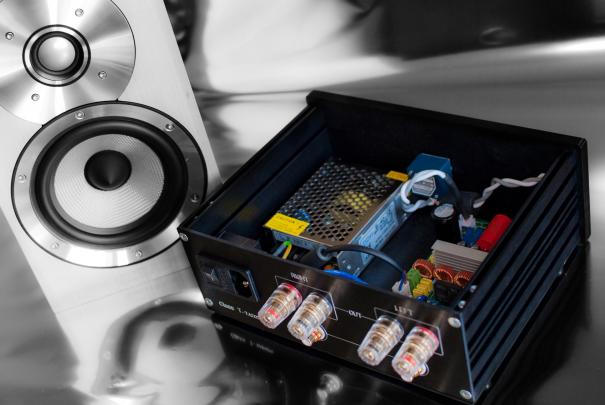

An Arjen Helder tripath board with smps in a custom made aluminium chassis, anodised in black.

Improvements to the PCB:
- 400 volts 2.2uF audio grade film capacitors with excellent dissipation factor ( 0.006 % @ 10KHZ )
- Bigger board size for more space to replace components
- Thicker PCB material, PCB is now 3mm Thick!!
- Bigger output coils, with Micrometers T68-1 Torrodial core for a much improved transient response
- DC offset adjustment with high grade 10 turns photometers
- Signal lights for power and overload are separately connected with connectors
- Extra large 6800uF 25 V buffer capacitor ( more than 3 times bigger than the competition )

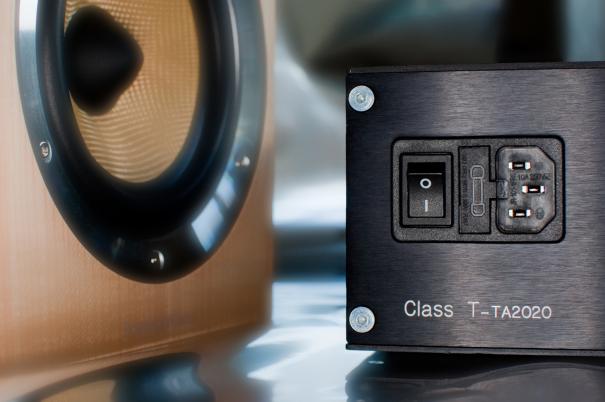

- AC and DC power input supported ( rectifier onboard )
- Very wide operating voltage 9-15 volts, perfect for people that run off of batteries
- Copper mounting studs for easy mounting in the housing

some of the amp board features :


- Class-T architecture
- Single Supply Operation
Audiophile Quality Sound
- 0.03% THD+N @ 10W 4Ohm
- 0.1% THD+N @12W 4Ohm
- 0.18% IHF-IM @ 1W 4Ohm
High Power
- 13W @ 8 Ohms, 10% THD+N
- 23W @ 4 Ohms10% THD+N
- 38W EIAJ* VDD=14.4V @ 4Ohm
- High Efficiency
- 88% @ 12W 8Ohm
- 81% @ 20W 4Ohm
- Dynamic Range = 103 dB
- Up to 2X25Wrms @ 4Ohm, VDD=14.6V
- Mute and Sleep inputs
- Turn-on & turn-off pop suppression
- Over-current protection
- Over-temperature protection
