- Item: Speaker
- Type: Small Speaker
- Posted: 4 August 2015
- Builder: marcydarcy
- Country: Germany
- Comments: 8
Perfect FAST
I fell in love with the Boenicke Audio W5 SE that I just decided to rebuild those.

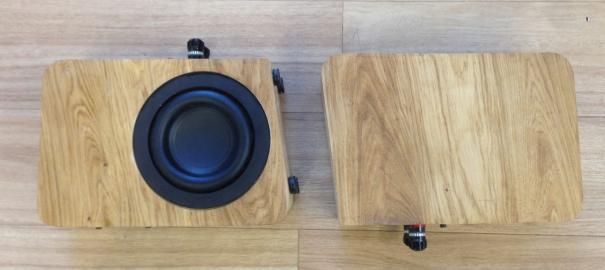

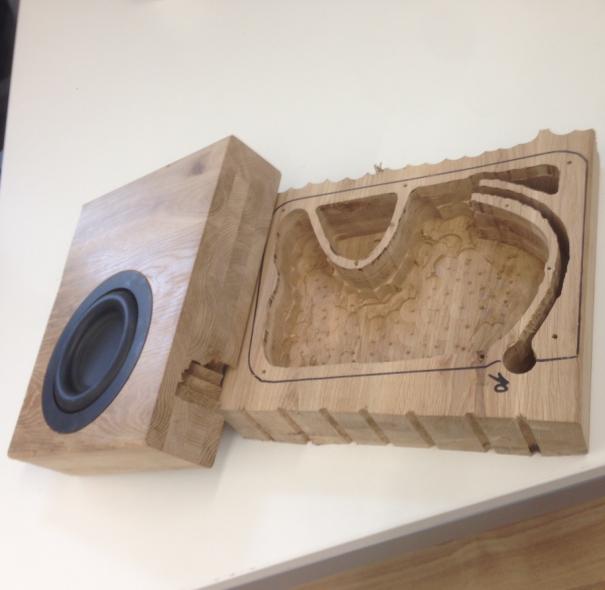

Parameters have been clear same chassis and made out of two pieces of wood. Clear issue was that I didn't had any CNC to create this. So I spend hours of milling with my router.

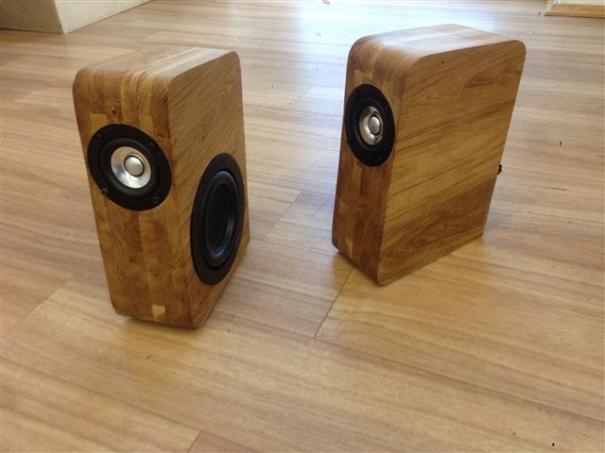

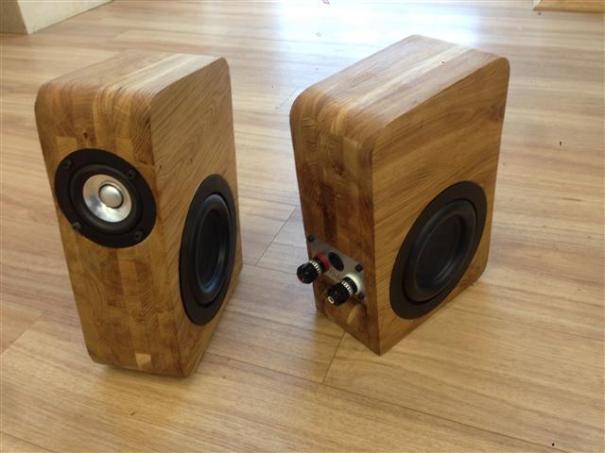

Result is astonishing and makes me very happy here.
The crossover was self designes using just filters first order. All equipped with solid Jantzen and Clarity Caps.
Parameters have been clear same chassis and made out of two pieces of wood. Clear issue was that I didn't had any CNC to create this. So I spend hours of milling with my router.
Result is astonishing and makes me very happy here.
The crossover was self designes using just filters first order. All equipped with solid Jantzen and Clarity Caps.
Comments
- Juicie
- 4 September 2015 at 04:58AM
- Could you share your crossover design? I would love to build those to.
- marcydarcy
- 23 September 2015 at 04:41AM
- Just checkout my Thread at klangfuzzis. There are all details including crossover.
http://www.klangfuzzis.de/showthread.php?713257-Perfect-F-A-S-T
Just register there otherwise this link won't work out.
- Johnny16
- 28 October 2016 at 06:16PM
- Excellent project!!!! Like the authentic one!!!
Is it possible to send me the crossover?
- sdaudio2
- 27 December 2016 at 12:03PM
- Question:What large driver is this...am interested in building these too! I have two of the same small drivers coming but need info on these larger drivers...you have done a fine job on these...Did you start with a narrow port and gradually enlarge it?Did you use any insulation inside?Thank you in advance for any response...Dave
- kalle
- 6 February 2017 at 12:10PM
- Could you share your crossover design? I would love to build those to?
I cant find the crossower at
klangfuzzis.
And wats the dimension on the port how long and thick is it?
i hope i get an answer
nice prodject.
- GG
- 26 March 2017 at 04:51AM
- Hello marcydarcy,
I can't checkout your thread at klangfuzzies, it was not possible to register. I already wrote to the admin, but no reaction until now. I would like to have more information about xover and cutout parameter, if you are willing to share. I live in Goch, Germany, please contact me via eMail kugapple@kugnet.de for further conversation.
Best regards
Kai-Uwe
- marcydarcy
- 4 April 2017 at 03:26AM
- Please checkout my facebook page for any questions on this:
https://www.facebook.com/CM7-Audio-617258111810163/
Easier for me to follow up items there.
Of course you can also ask your questions there in english
- Thomashifisound
- 22 July 2020 at 02:30PM
- Hello, nice build. Is it possible for you to share your knowledge and information regarding the building process. Plans, routing, crossover ie.
Best regards
/T
