- Item: OTL Headamp 6N2P, 6V6GT
- Type: HA-6V6GT OTL
- Posted: 4 November 2015
- Builder: firemann28
- Country: Slovakia
- Comments: 0
HA-6V6GT OTL
Schematics is taken from HA with EL803s http://svetelektro.com/modules/Forums/download/file.php?id=21617&mode=view
Recalculated for use the 6v6gt tubes.

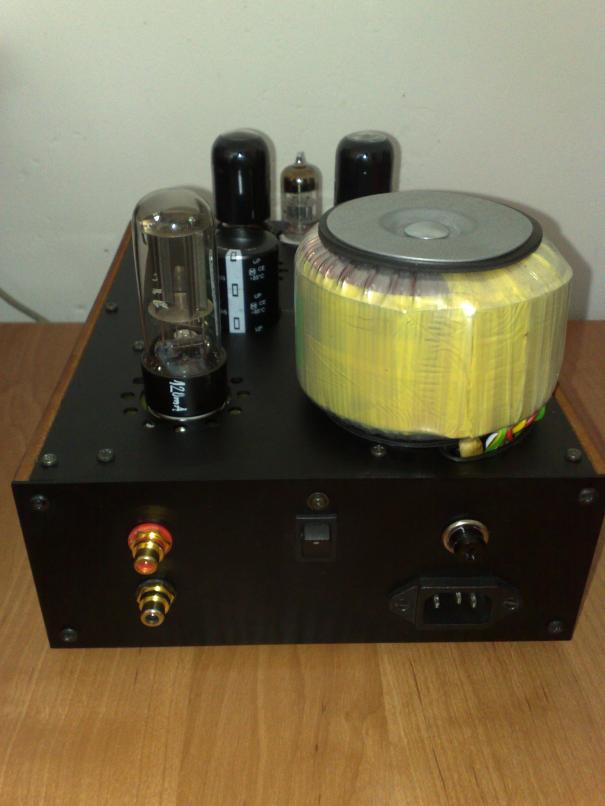

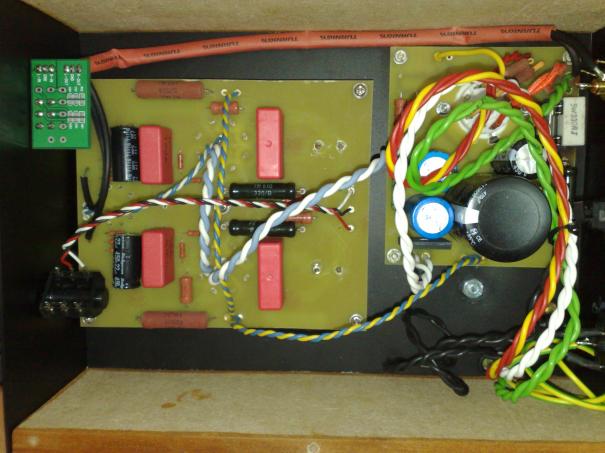

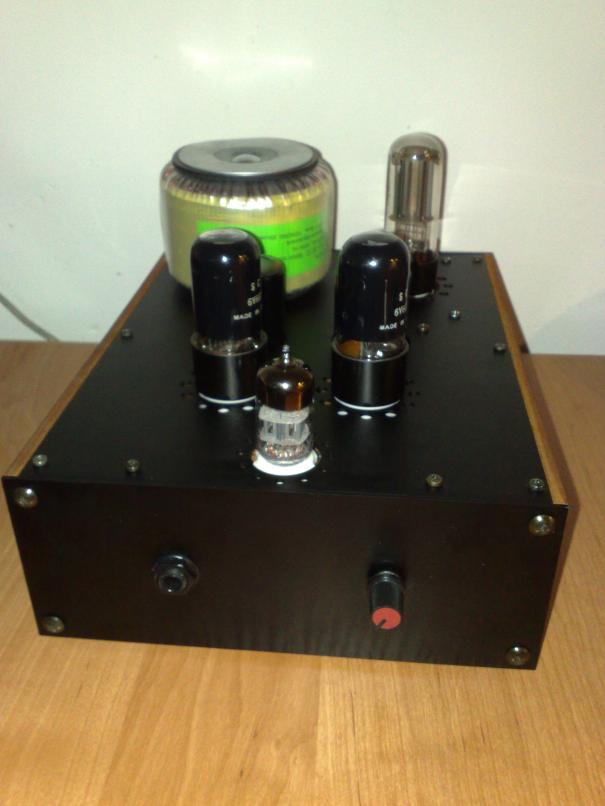

PCB is my own design and chassis is home-made CNC drilled. Power supply is using russian rectifier tube 5C4S.
Recalculated for use the 6v6gt tubes.
PCB is my own design and chassis is home-made CNC drilled. Power supply is using russian rectifier tube 5C4S.
