- Item: Home System
- Type: Snailhorns Open Baffle Basshorn
- Posted: 31 August 2016
- Builder: Hornsolutions
- Country: Germany
- Comments: 0

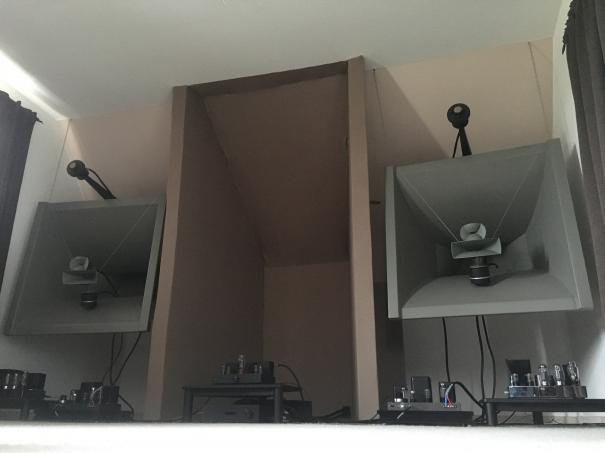

Hornsolutions listening room 2016
Bass is an Open Baffle Basshorn Hybrid. Plays with 2 x 15" Altec 416B and 2x 15" Isophon 38A from 20-150Hz.

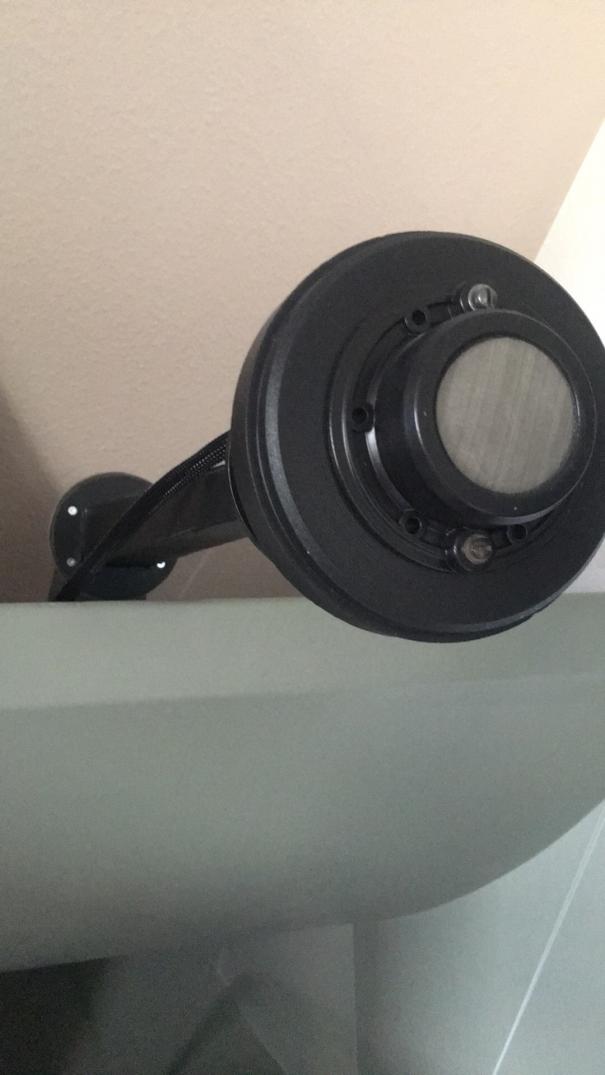

Lower Midrange by Satohorn with self designed 666 compression driver: 160-1180Hz.

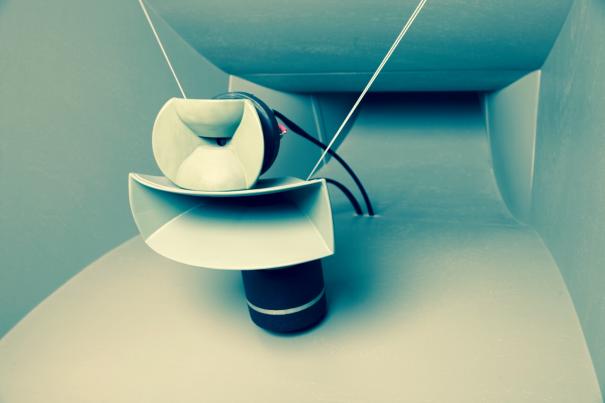

Then Western Electric Horn with a modified JBL 175: 1250-4800Hz and as a tweeter a modified JBL Butt which is a 3D printed horn with an different sound Angle/Radiation of 110/90 for proper integration to the Sato and WE Horn: 4850-20.000Hz.
Everything is homebuilt, even the cables.

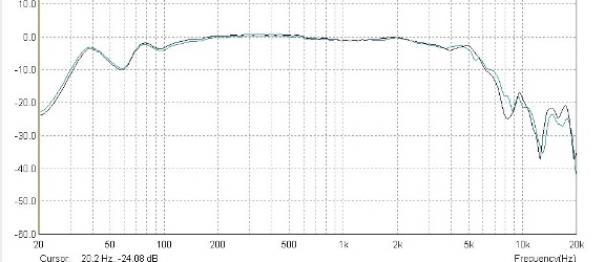

On the 4th picture is a PWT Measurement of the Compressiondriver without Sato.
www.hornsolutions.de
Lower Midrange by Satohorn with self designed 666 compression driver: 160-1180Hz.
Then Western Electric Horn with a modified JBL 175: 1250-4800Hz and as a tweeter a modified JBL Butt which is a 3D printed horn with an different sound Angle/Radiation of 110/90 for proper integration to the Sato and WE Horn: 4850-20.000Hz.
Everything is homebuilt, even the cables.
On the 4th picture is a PWT Measurement of the Compressiondriver without Sato.
www.hornsolutions.de
