- Item: SET tube power amplifier
- Type: Get*Set*Go from diytube.com
- Posted: 1 December 2017
- Builder: vvelt
- Country: United States
- Comments: 2
Get*Set*Go

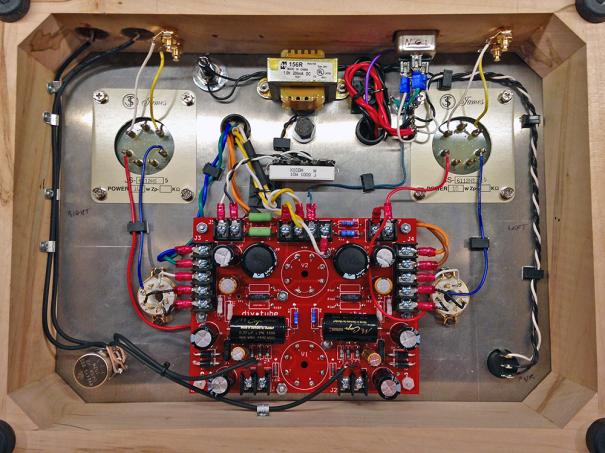

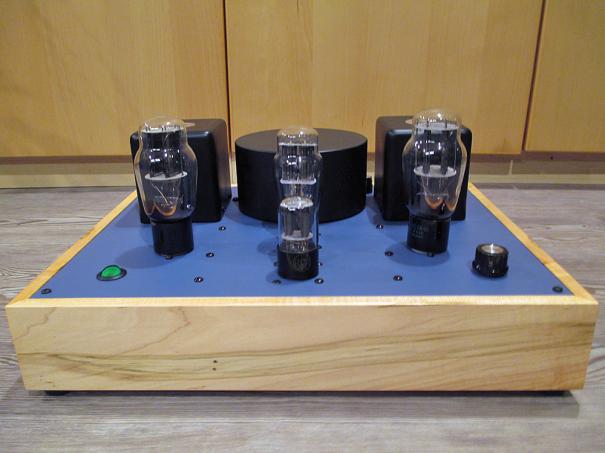

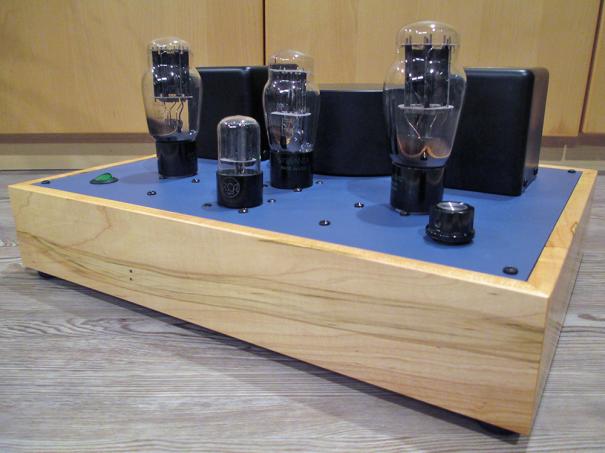

This is a SET amp project from diytube.com using the 6B4G directly heated triode tubes. I was fortunate to get one of the last boards, now discontinued, and also grabbed one of the last available pairs of James OPTs. I modified the power supply from the original project to use a 6BY5 damper diode.
The design calls for a power transformer having 330v with two 6.3v filament taps, and a 6AX5 rectifier. I changed this to use an Antek toroidal transformer giving just 300v with more current to the filament taps. This allows using the 6BY5 rectifier, which has a nice ST shape. When I breadboarded this my B+ was a bit too high so I added a resistor before the filter choke and increased the RC resistors slightly. This gives me the target B+ and allows the circuit to run as it was designed. There are no other changes made to it.
The design calls for a power transformer having 330v with two 6.3v filament taps, and a 6AX5 rectifier. I changed this to use an Antek toroidal transformer giving just 300v with more current to the filament taps. This allows using the 6BY5 rectifier, which has a nice ST shape. When I breadboarded this my B+ was a bit too high so I added a resistor before the filter choke and increased the RC resistors slightly. This gives me the target B+ and allows the circuit to run as it was designed. There are no other changes made to it.
Comments
- mwhouston
- 3 December 2017 at 07:38PM
- Never heard of the power tube. Nice to see a top plate in any other colour than black.
- vvelt
- 6 December 2017 at 09:46AM
- The 6B4G's are like a 2A3's, but the filaments are 6v and they have an octal base. The ones I have are NOS Sylvania, and Sovtek still makes them. This amp provides DC to the filaments. Also, I’m with you on using some color on top, makes things more interesting.
