- Item: Shop amplifier
- Type: Transmitter tube amp
- Posted: 5 February 2018
- Builder: JC
- Country: United States
- Comments: 1
Overkill Deluxe
Here is the tube amp I always wanted to build. Construction time has been about 3 years but I have been gathering parts and iron forever.

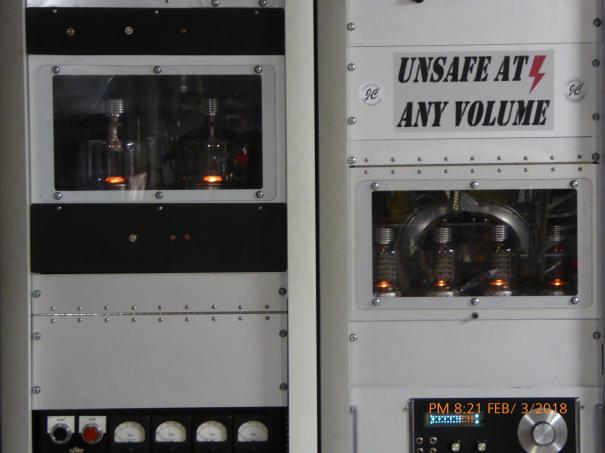

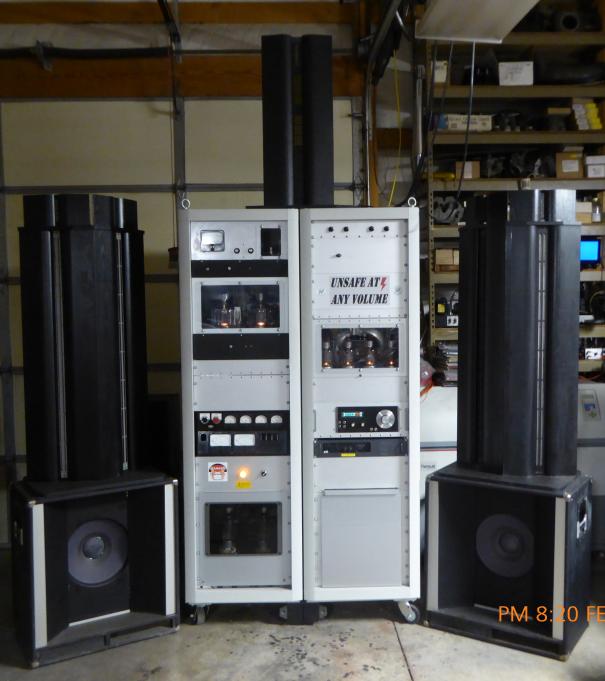

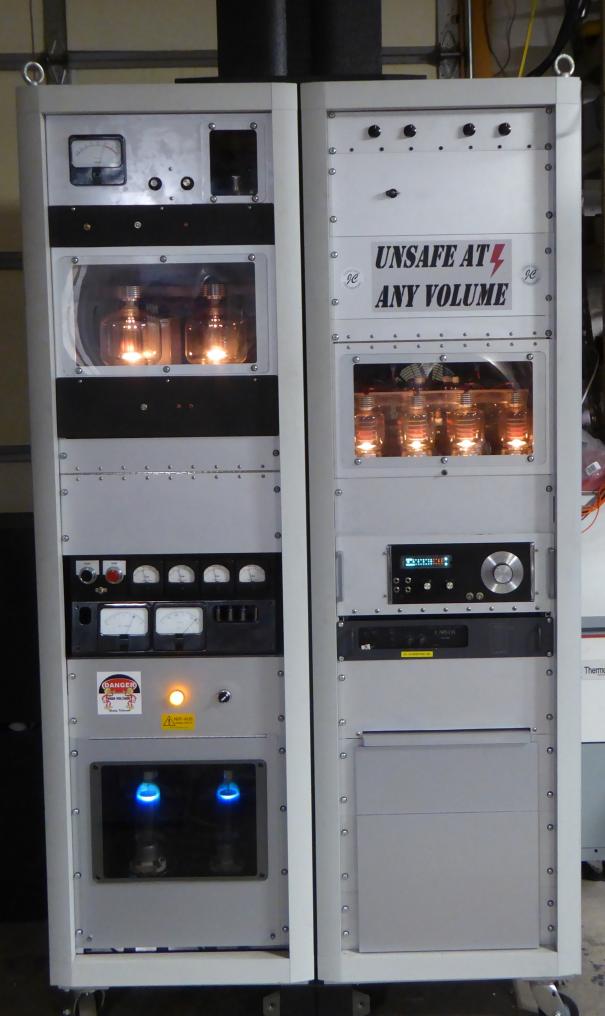

It uses four 4-400 tubes to drive the 4-48 inch ribbons and 15 inch JBL's and a pair of gu-46 tubes to drive 4-10 inch long throw subs.

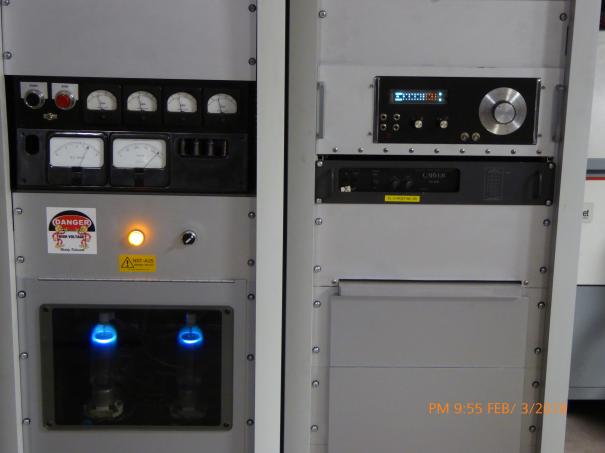

B+ voltage is 2500 volts and uses a pair of 872 MV rectifiers to charge 12- 10,000 mfd 450 volt caps.
Weight is around 2200 lbs W/O speakers.
It uses four 4-400 tubes to drive the 4-48 inch ribbons and 15 inch JBL's and a pair of gu-46 tubes to drive 4-10 inch long throw subs.
B+ voltage is 2500 volts and uses a pair of 872 MV rectifiers to charge 12- 10,000 mfd 450 volt caps.
Weight is around 2200 lbs W/O speakers.
