- Item: "Il Terzo" - EL84/12AX7
- Type: Push-Pull Integrated Amplifier
- Posted: 23 September 2018
- Builder: gamato
- Country: Italy
- Comments: 2

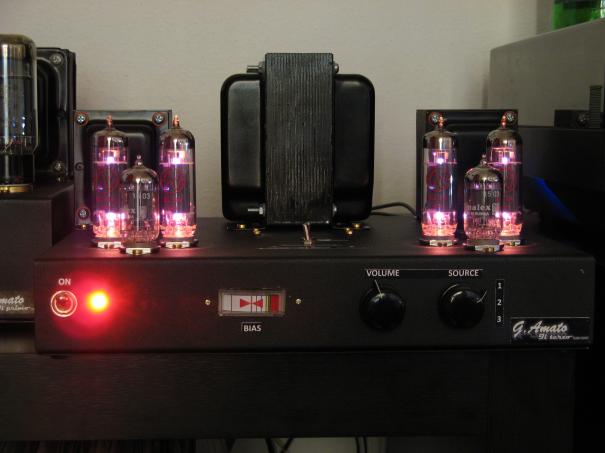

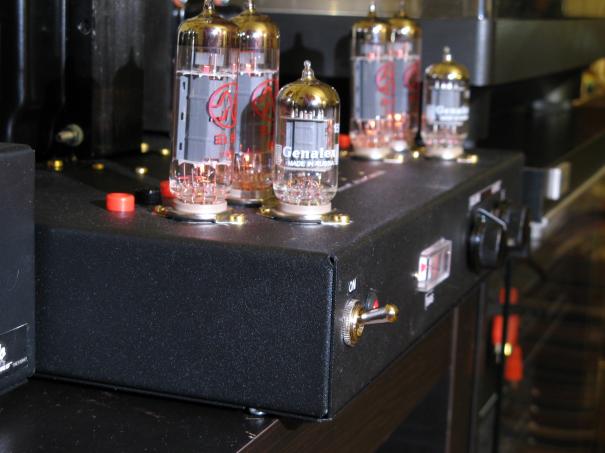

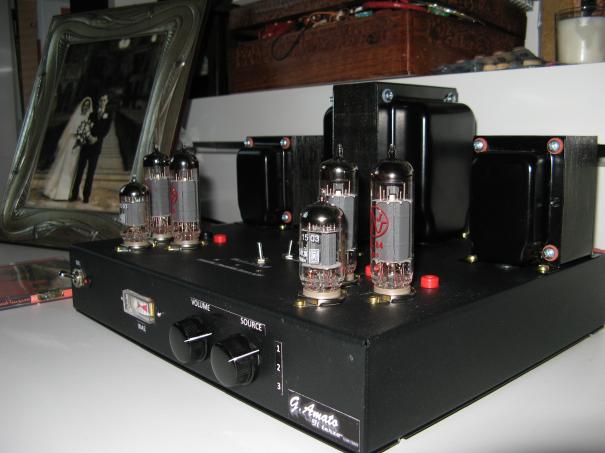

"Il Terzo" - EL84/12AX7
Il Terzo, which in English means “The Thirdâ€, is the third vacuum tube amplifier I built. It uses EL84 power tubes and 12AX7 vacuum tubes as input and phase split. Its design is precisely discussed and described here:https://www.vtadiy.com/book/chapter-6-step-by-step-design-of-a-push-pull-tube-amplifier/
Features of the project are:
-Push-Pull stereo integrated amplifier
-Max Output Power 2x ~12W, @ 1 Volt peak input signal, with 16dB global negative feedback
-Power Stage: 2x 2 EL84 power vacuum tubes in Push-Pull Ultra-Linear configuration and fixed bias
-Phase Split Stage: DC coupled Concertina with 12AX7 vacuum tubes
-Input Stage: 12AX7 vacuum tubes with self bias and bypass capacitor
-Class AB with 28 mA anode current bias

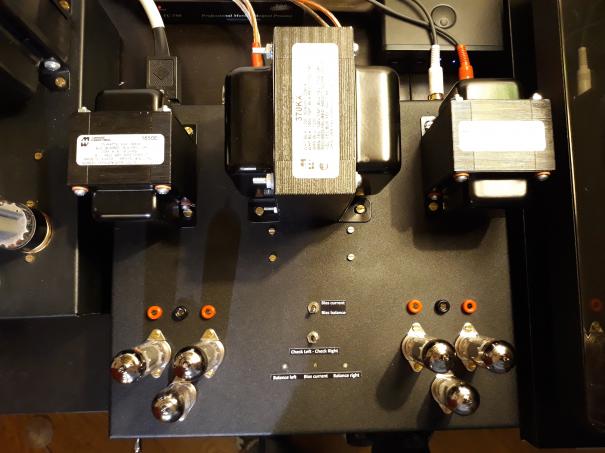

-Output Transformer: Hammond 1650E, Primary: 8K Ohm C.T., 40% screen tap, Secondary: 4, 8, 16 Ohm
-Power Supply Unit Transformer: Hammond 370KX 500V c.t@322mA
-Global Negative Feedback: 16dB
-THD (measured with Sovtek 12AX7 LPS + JJ EL84), at 1W: 0.05%, at 5W: 0.12%, at 10W: 0.18%
-Two only capacitors in the signal path
4, 8 Ohm Speakers
-Input Impedance: 100K Ohm
-Output Impedance: 0.4 Ohm
-Damping Factor: 18
-3 selectable input sources
Features of the project are:
-Push-Pull stereo integrated amplifier
-Max Output Power 2x ~12W, @ 1 Volt peak input signal, with 16dB global negative feedback
-Power Stage: 2x 2 EL84 power vacuum tubes in Push-Pull Ultra-Linear configuration and fixed bias
-Phase Split Stage: DC coupled Concertina with 12AX7 vacuum tubes
-Input Stage: 12AX7 vacuum tubes with self bias and bypass capacitor
-Class AB with 28 mA anode current bias
-Output Transformer: Hammond 1650E, Primary: 8K Ohm C.T., 40% screen tap, Secondary: 4, 8, 16 Ohm
-Power Supply Unit Transformer: Hammond 370KX 500V c.t@322mA
-Global Negative Feedback: 16dB
-THD (measured with Sovtek 12AX7 LPS + JJ EL84), at 1W: 0.05%, at 5W: 0.12%, at 10W: 0.18%
-Two only capacitors in the signal path
4, 8 Ohm Speakers
-Input Impedance: 100K Ohm
-Output Impedance: 0.4 Ohm
-Damping Factor: 18
-3 selectable input sources
Comments
- Aros71
- 24 September 2018 at 11:47PM
- It looks great. You're using the same OPTs as me :)
Interested to see how you got enough open-loop gain to allow 16dB of gNFB, I'll study your schema carefully.
Everything is point-to-point - no PCBs?
- gamato
- 3 October 2018 at 05:22AM
- Hi Aros71,
sorry I did not notice your comment before.

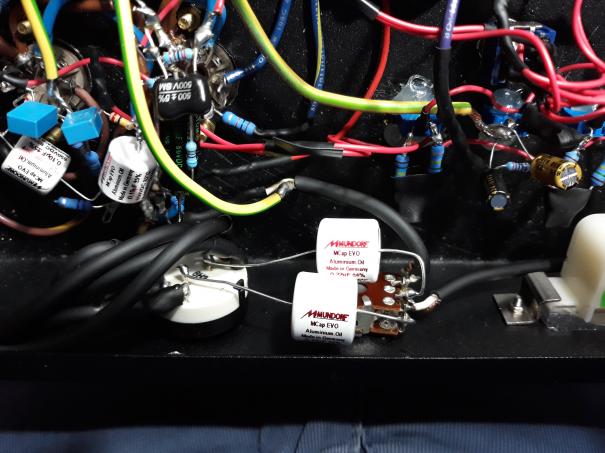

Yes I did not use PCBs. All point-to-point.
Discussion on how I obtained 16dB of gNFB is here: https://www.vtadiy.com/book/chapter-6-step-by-step-design-of-a-push-pull-tube-amplifier/6-3-global-negative-feedback/
