• Item: Power amplifier
  • Type: Chipamp/Gianclone
  • Posted: 11 September 2011
  • Builder: osscar
  • Country: Latvia
  • Comments: 4

OPA 549 Chipamp

Non-inverting configuration.

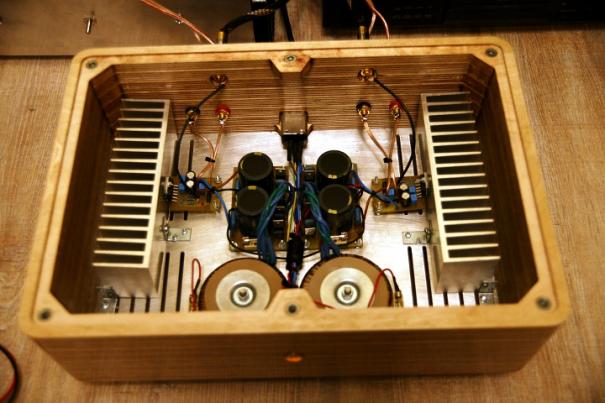

2x100VA 2x17VAC transformers
2x22 000uf per rail

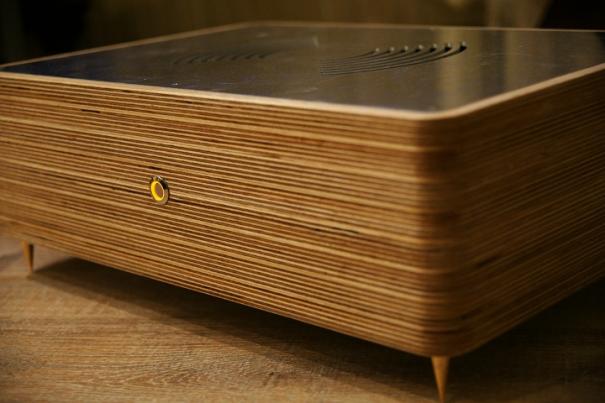

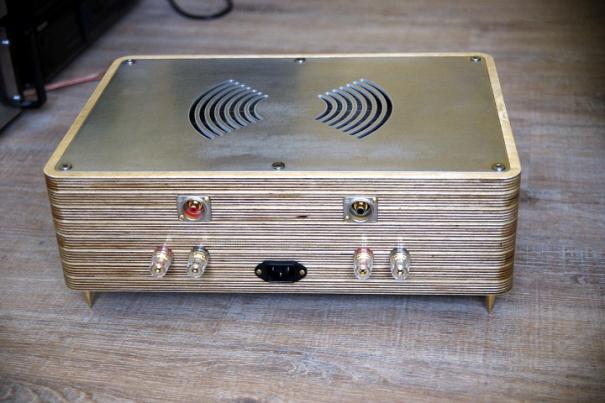

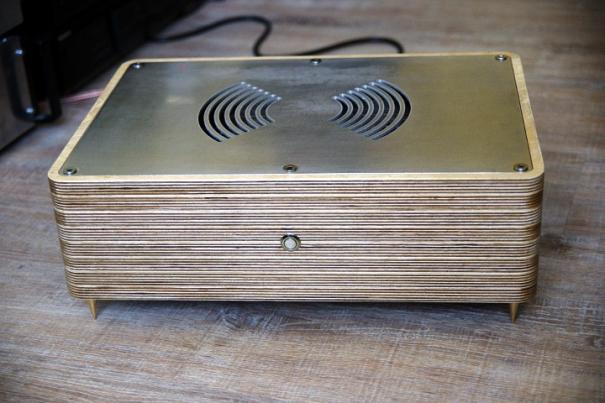

Plywood enclosure from 8 glued frames (catted on CNC)
Aluminum covers

Comments

  • leopard
  • 12 September 2011 at 02:31PM
  • Very nice implementation. What can I say more - good job and I like it the way it looks. Keep on going that way.
  • GA-Audio
  • 22 September 2011 at 01:48AM
  • nice body...
  • altofalantes
  • 18 December 2011 at 07:36PM
  • Belo trabalho, rico em detalhes. ParabĂ©ns.
    A saida seria o lm 3875?
  • mbrennwa
  • 11 June 2016 at 04:49AM
  • Beautiful!
