- Item: 813 P-P Monoblock amps (under construction)
- Type: 813 Push Pull
- Posted: 1 August 2012
- Builder: Triodes4ever
- Country: Netherlands
- Comments: 0
Fat Ass

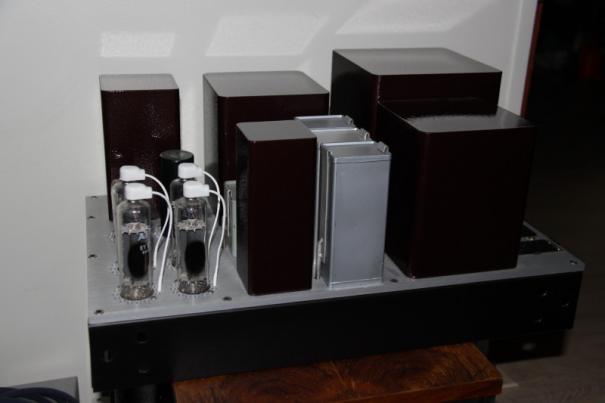

813 in Push-Pull. Driver Elrog 300B (Thomas Mayer), input (2)27. All amorphous iron Tribute Audio (NL) and Tango. Choke-input HV powersupply with amorphous L. All electrolytics BlackGate.

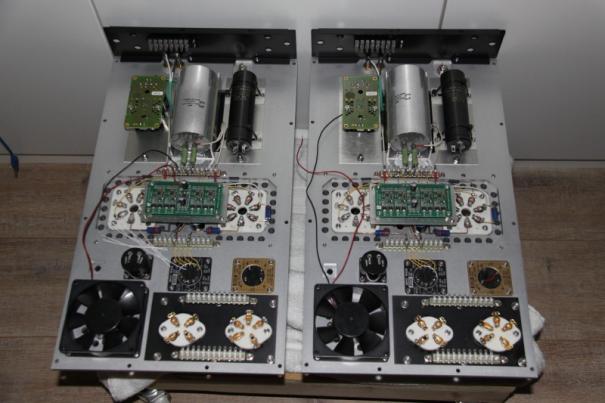

Rectifier Graetzbridge of 4 x EY500A. HV caps Solen/Chateauroux polyprop. Tentlabs tube bias and 300B filament supply.

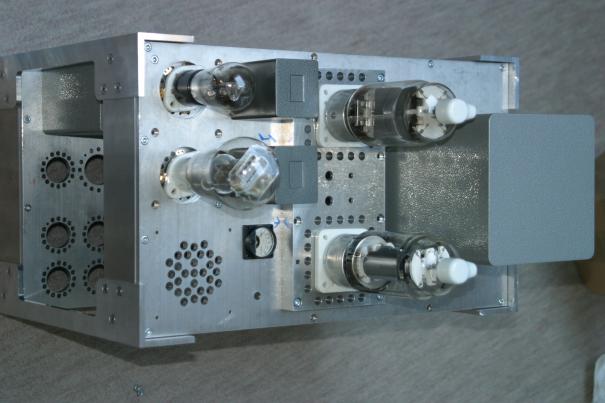

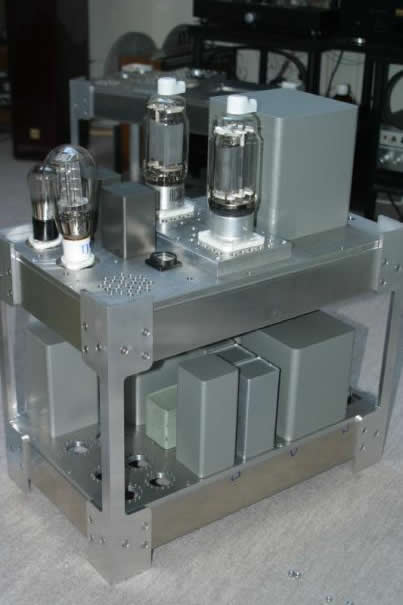

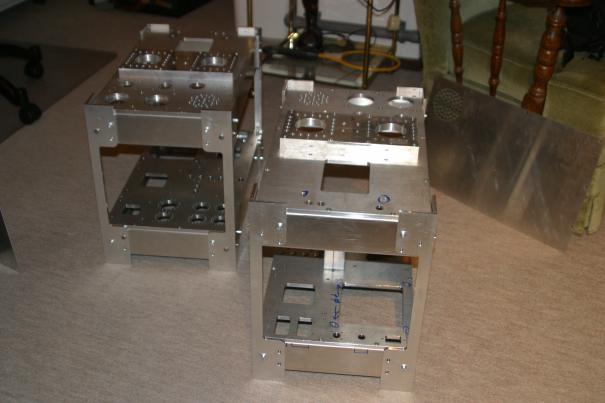

Built in two "floors" to reduce footprint. Material heavy anodized Aluminium, CNC processed. Top-decks 8mm.
Rectifier Graetzbridge of 4 x EY500A. HV caps Solen/Chateauroux polyprop. Tentlabs tube bias and 300B filament supply.
Built in two "floors" to reduce footprint. Material heavy anodized Aluminium, CNC processed. Top-decks 8mm.
