My first ever headphone amp and the one that started the hobby... or should I call it addiction? :)

To be honest I didn't know much then about electronics and had a hard time reading a schematic, let alone understanding it :)

The amp was based upon a popular schematic here in Germany, I only changed it to my liking in that I included lots of chokes and the tube rectifier.

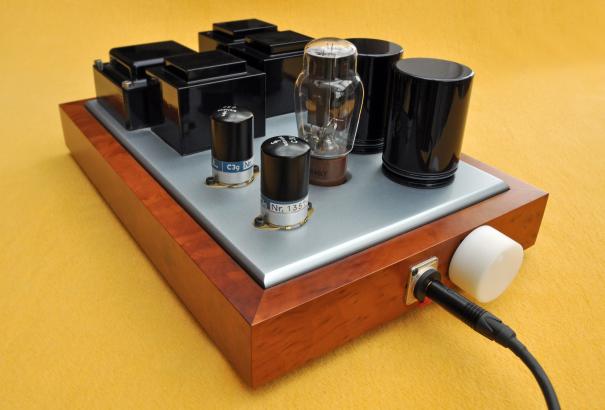

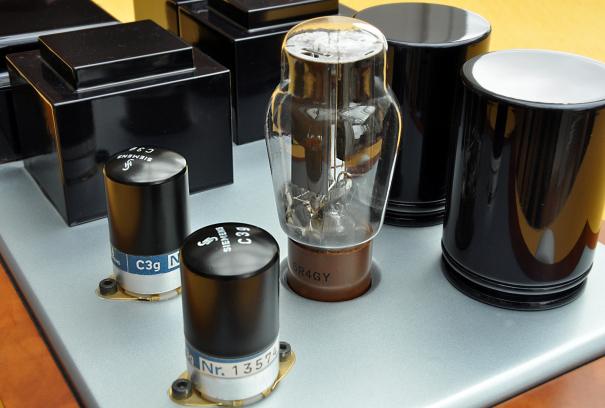

The schematic is very simple, and that's the beauty of it! Two C3G and one 5R4 are used, have worked flawlessly for over 7 years and are still fun to listen to although my later builds are
sounding better...
