This is one of my first design, made in 2008-2009. That was also with this speaker that I started to learn how to use a router.

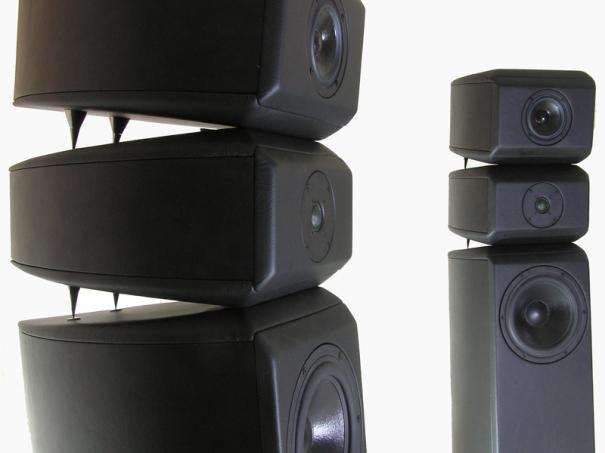

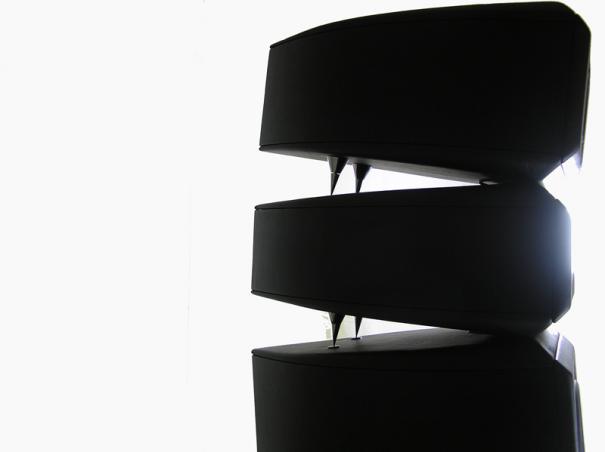

Each driver is in its individual cabinet made by piling up layers of MDF.

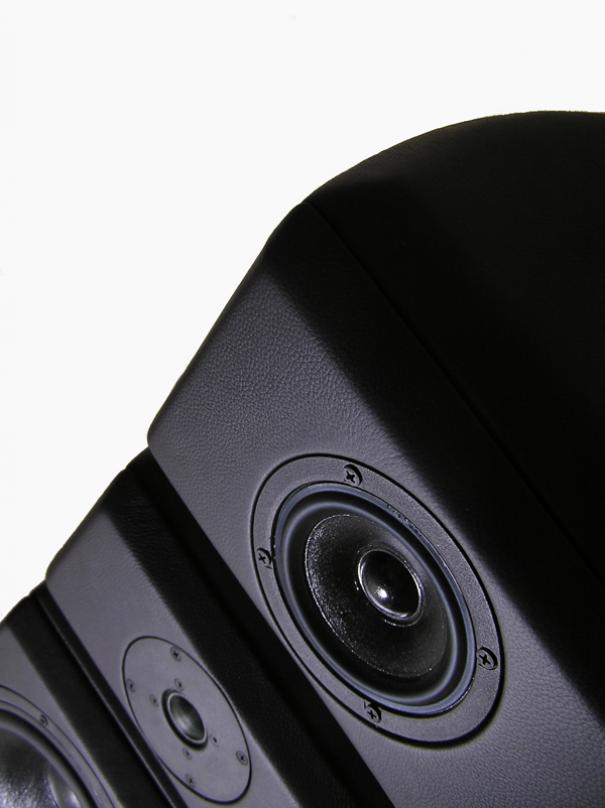

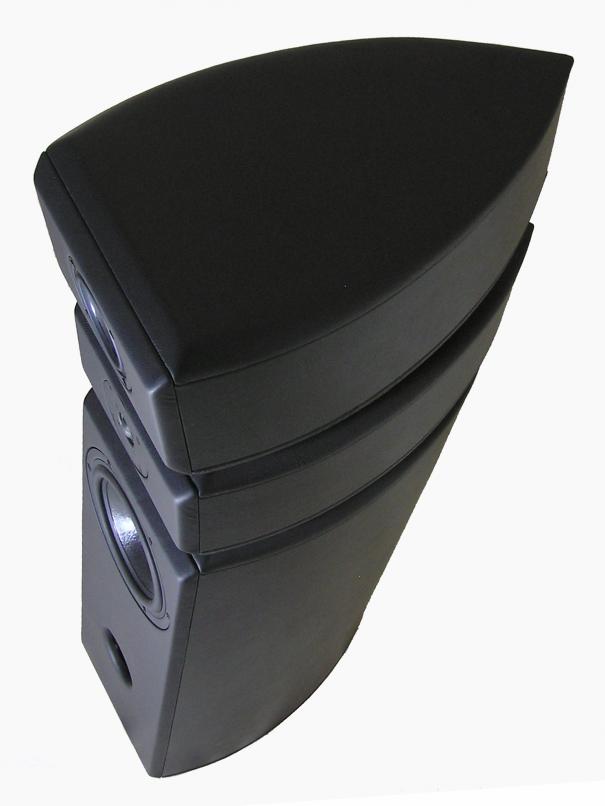

They are covered with fake leather on their curved sides and real one on the front and tops.

The drivers are:
Woofer: Vifa PL22WR09-08
Midrange: Vifa PL11MH09-08
Tweeter: Seas 27TFFC
