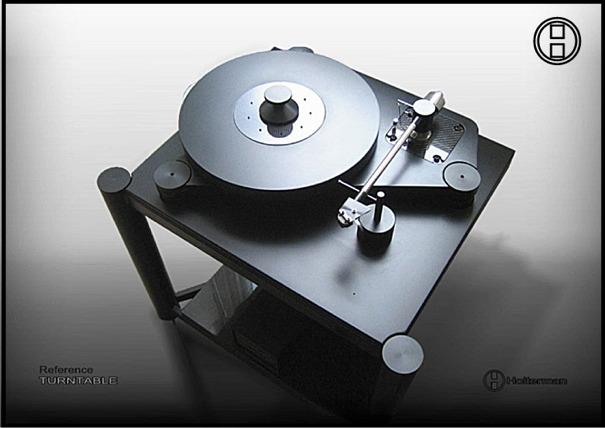

This turntable is a custom project and aspires to the state of the art; it represents many years of development, measurement and experimentation.

The design goals were to define the role of individual elements and optimise them for their purpose. In addition, the definition and control of energy paths, both internal and external to the design, was considered essential.

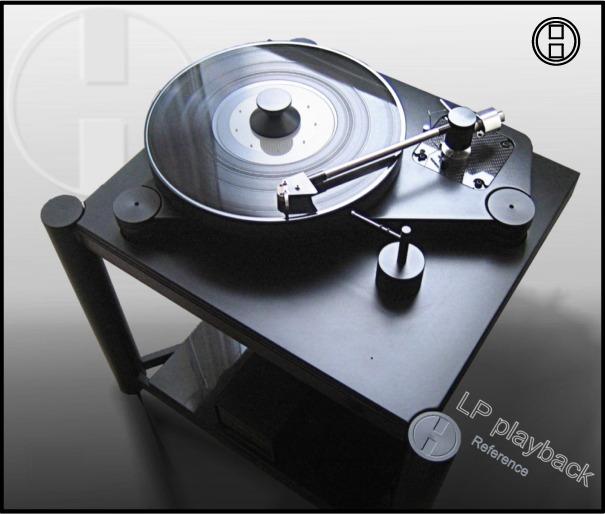

The basic design consists of an AC motor driving a platter through a precision ground belt. The chassis sits on a plinth which is integral to the supporting stand. The plinth incorporates a suspension system which isolates the turntable both from motor noise and the environment.

The motor is powered by an external power supply and the drive system has been built in such a way that torque delivery is maintained at a constant level. A lot of care (and design) has been taken to ensure that speed stability is significantly better than the majority of belt driven turntables.

The bearing is precision machined and magnetically supported to give extremely low noise.

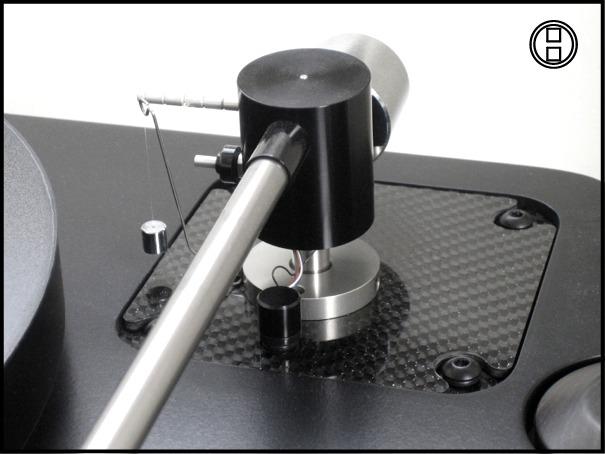

The chassis and armboard are both constructed from carbon fibre and both the shape and construction have been optimised for their purpose.

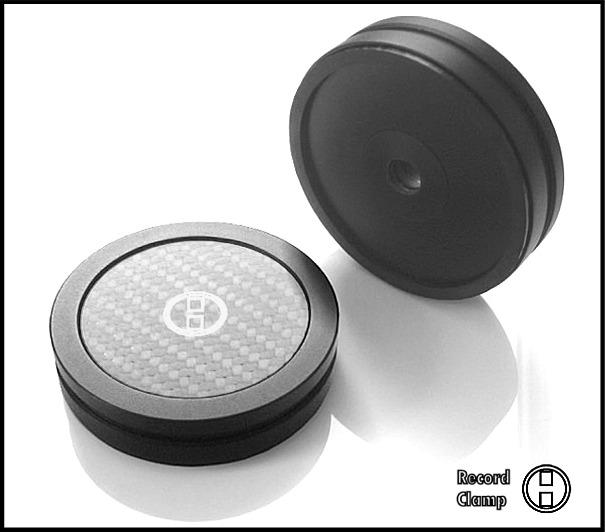

The record is supported on a point contact system and held by a unique design of clamp.

The stand is physically incorporated within the structure of the plinth. The plinth incorporates quite an elaborate suspension system that employs both a hydraulically and pneumatically damped sprung suspension.

Development is ongoing and both the armboard and record clamping system are the result of recent investigations.

The arm shown is a Naim ARO, although I am currently developing an arm of my own design.
-----
The latest update is a new power supply, the 'Tech-Tock'.

http://www.homebuilthifi.com/project/18761
