• Item: Speaker Stands for Yamaha NS-1000M's
  • Type: Welded steel, spiked and filled with lead shot
  • Posted: 16 December 2012
  • Builder: YNWaN
  • Country: United Kingdom
  • Comments: 21

NS1000 TRI-ton

These are a pair of custom stands specifically designed to get the absolute best from the legendary Yamaha NS-1000 Monitor speakers. They are fabricated from a mixture of 50mm and 40mm square section tube with a wall thickness of 4mm. The open ends of the tube are capped with 7mm steel plate. In addition, threaded inserts have been welded in to the legs at both the top and bottom to extend the available thread and increase rigidity.

Custom spikes have been manufactured for both the top and bottom of the stand. Those that make contact with the speaker have an M12 thread and captive washer. They tighten against a washer custom made from 0.8mm polypropylene. If desired, the supper spikes can be replaced by ball bearings or an adjustable spike/pad.

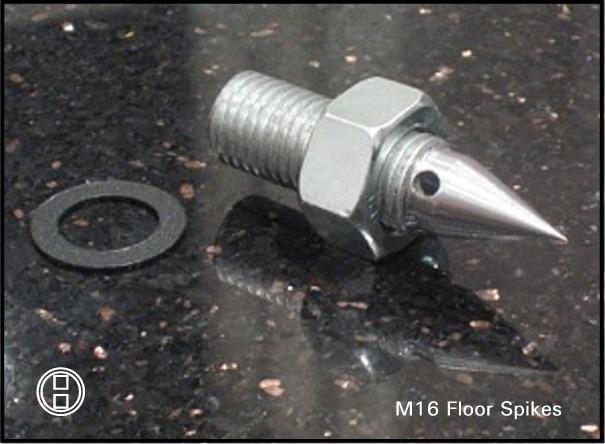

The spikes that make contact with the floor have a substantial M16 thread and are sufficiently long to allow a wide range of adjustment (over 30mm). They are fabricated from stainless steel and have a 4mm hole drilled through them to aid adjustment. A lock-nut is provided and this tightens against a custom made polypropylene washer.

The three main legs of each stand are entirely filled with lead shot and the finish is a textured satin black.

The logo badges are 25mm square and are laser etched on to 1mm brushed aluminium to visually match the original badging on the Yamaha monitors.

The completed stands are extremely solid, inert and rigid. They raise the tweeter to the optimum height and offer a wide range and ease of adjustment.
