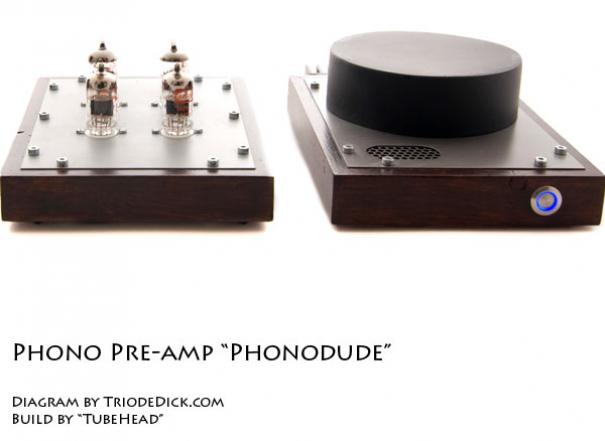

PhonoDude
Phonodude is an Phono pre-amp with vacuum tubes including the rectifier.
The electric diagram is made by TriodeDick.com.
Building the pre-amp.
---------------------
I wanted to make the amp "old style" with a "modern touch".

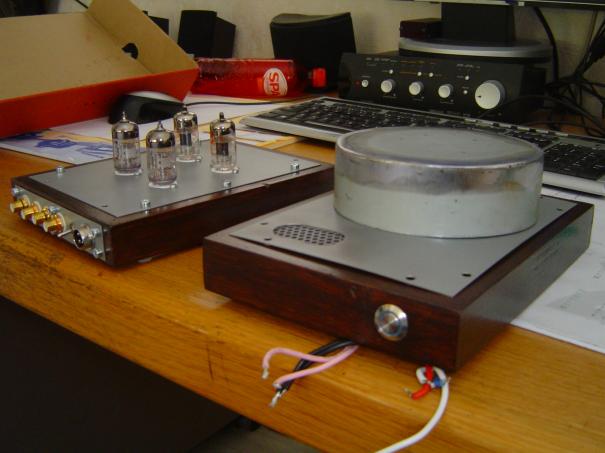

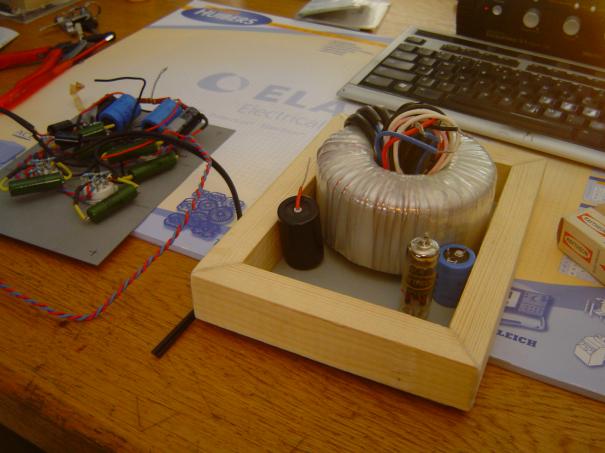

Both Audio and Power Supply have the same sizes. Wooden frame is glued together and stained with a brown dark color. In combination with the Sandblased metal parts ( and sprayed with Plastik Spray ) gives a fresh classy look.
The power supply has also a tube(rectifier).
I didn't want to put the tube outside. Since it was the only one it looked a bit trashy. I decided to put the tube inside and placed horizontal.
Ofcourse a tube gets hot and provided the under and upper metal sheet this "honey comb mesh" thing from an old PC Power Supply. ( Inspired by an old Sonic the Hedgehog game and it looked very nice if i may say :D )
I also used a switch at the backside from the Audio unit. So i can choose how many voltage the tube Heater wil gets.
So i can choose ECC83 ( 12volt when both heaters are in serial) or the russian equivelant 6N2P( wich only is 6 volts).
By using the same pins.
Problems when Building:
----------------------

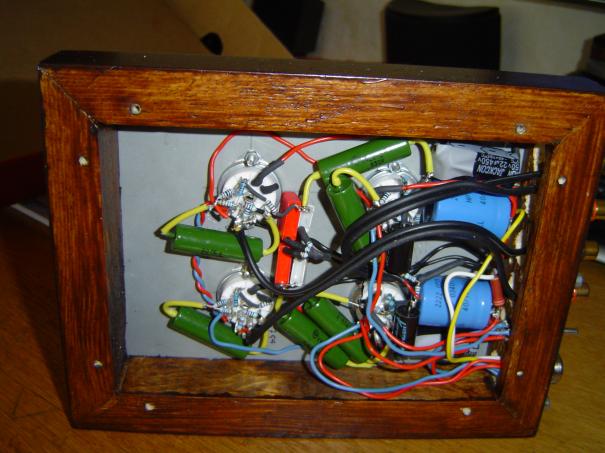

While building ive knocked my head many times. Biggest problem was the lack of space.

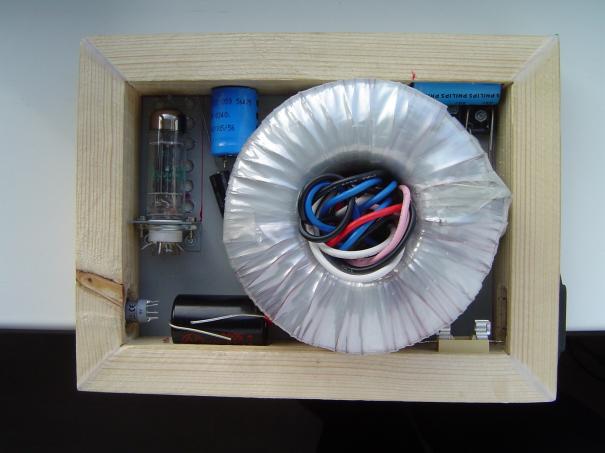

Since i didn't got many space in the Power Supply i had to cut some wood from the frame so a Capacitor would fit in. ( see picture with the big transformer and look in the upper right )
And the voltage regulator for the fillament gets VERY HOT ! So i provid it with a cooling sink.
The electric diagram is made by TriodeDick.com.
Building the pre-amp.
---------------------
I wanted to make the amp "old style" with a "modern touch".
Both Audio and Power Supply have the same sizes. Wooden frame is glued together and stained with a brown dark color. In combination with the Sandblased metal parts ( and sprayed with Plastik Spray ) gives a fresh classy look.
The power supply has also a tube(rectifier).
I didn't want to put the tube outside. Since it was the only one it looked a bit trashy. I decided to put the tube inside and placed horizontal.
Ofcourse a tube gets hot and provided the under and upper metal sheet this "honey comb mesh" thing from an old PC Power Supply. ( Inspired by an old Sonic the Hedgehog game and it looked very nice if i may say :D )
I also used a switch at the backside from the Audio unit. So i can choose how many voltage the tube Heater wil gets.
So i can choose ECC83 ( 12volt when both heaters are in serial) or the russian equivelant 6N2P( wich only is 6 volts).
By using the same pins.
Problems when Building:
----------------------
While building ive knocked my head many times. Biggest problem was the lack of space.
Since i didn't got many space in the Power Supply i had to cut some wood from the frame so a Capacitor would fit in. ( see picture with the big transformer and look in the upper right )
And the voltage regulator for the fillament gets VERY HOT ! So i provid it with a cooling sink.
