- Item: GM70 Monoblock set amplifier
- Type: Single ended tube amplifier
- Posted: 19 April 2013
- Builder: noyan
- Country: Turkey
- Comments: 7
GM70 Monoblock set amplifier

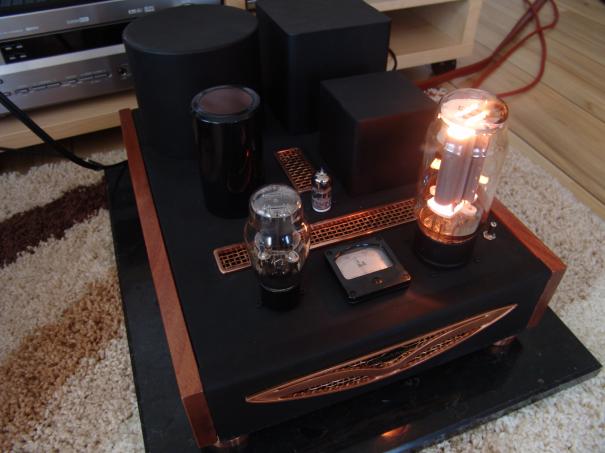

This is my GM70 SET Monoblock amplifier. ---Tubes: 6S45P-6B4G-GM70
-IT: AE (Automatic europe-Holland) 1:1 5Kiloohm double C core interstage transformer with 0,05mm lamination
-OPT: AE 7,5Kiloohm/6Ohm double C core 0,05mm lamination
-Working with 1100V/110mA
-IT: AE (Automatic europe-Holland) 1:1 5Kiloohm double C core interstage transformer with 0,05mm lamination
-OPT: AE 7,5Kiloohm/6Ohm double C core 0,05mm lamination
-Working with 1100V/110mA
Comments
- leopard
- 19 April 2013 at 03:36PM

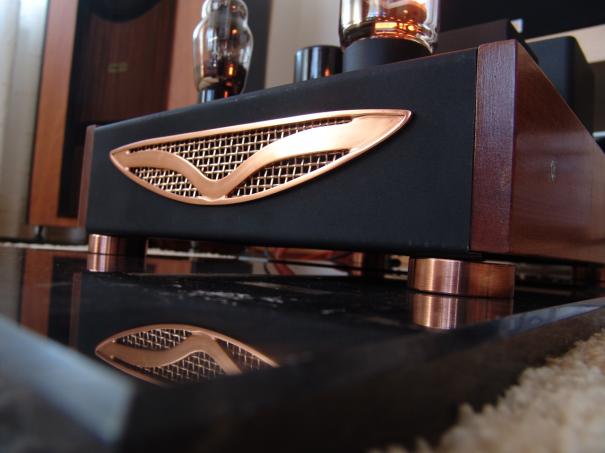

- Now that is awesome, the best part is that symbol/sign you made out. It looks incredible. I hope there is no CNC machines involved in this work? I would love to see more pictures af making the front decorative sign/grill. Nice done.
- noyan
- 20 April 2013 at 01:10AM

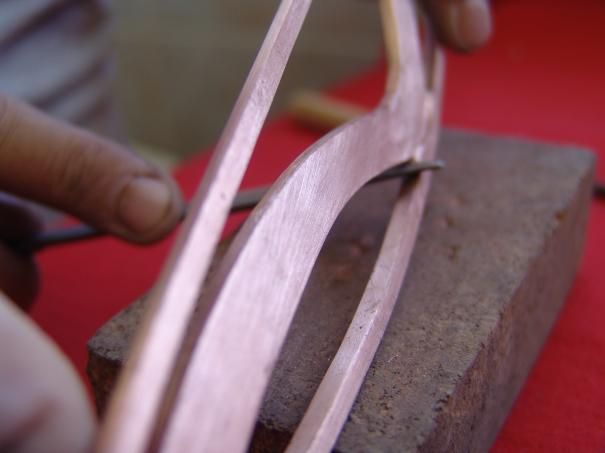

- Yes, CNS partly involved in this work but, refinement, polishing and varnishing of the copper done by hand.
MORE PHOTOGRAPHS CAN BE SEEN BELOW
http://l1304.hizliresim.com/18/n/m86b6.jpg
http://l1304.hizliresim.com/18/n/m86bq.jpg
http://l1304.hizliresim.com/18/n/m86c2.jpg
http://l1304.hizliresim.com/18/n/m86c9.jpg
http://l1304.hizliresim.com/18/n/m86cn.jpg
http://l1304.hizliresim.com/18/n/m86cr.jpg
http://l1304.hizliresim.com/18/n/m86cx.jpg
http://l1304.hizliresim.com/18/n/m86d1.jpg
http://l1304.hizliresim.com/18/n/m86d9.jpg
http://l1304.hizliresim.com/18/n/m86dg.jpg
http://l1304.hizliresim.com/18/n/m86dp.jpg
http://l1304.hizliresim.com/18/n/m86dx.jpg
- leopard
- 20 April 2013 at 02:59PM
- Definitely nicely built. Thanks for more pics and keep doing the good work and keep inspiring the DIY community :)
- Mark OTL
- 6 May 2013 at 05:39AM
- Really love the look and layout of your amps Noyan.
Just beautiful. They must give you a Buzz evertime you switch them on.
Cheers, MarkK
- noyan
- 11 May 2013 at 12:59AM
- Mark,
Thank you very much! It was really not an an easy project for me :)
Noyan
- Retro
- 1 June 2013 at 08:37PM
- I'm a great believer that amps should be about form and function. Not only should they sound excellent they should look excellent. And yours does. Lovely work.
- noyan
- 3 June 2013 at 02:55PM
- Thanks Retro!
