Continuing the build of MC cartridge preamps I decided to tackle something different. In this build a Jean Hiraga MC preamp schematic was used. Jean uses low noise bipolar transistors instead of jFets. He originally used discrete low noise transistors which are no longer available. But what is available is even better. In a single eight pin chip (SSM2220) two low noise, perfectly matched, transistors share a single substrate. The $AU11.00 chip, when used with a socket, makes construction and maintenance very easy. I use gold lined Mil-spec chip sockets. WBT 5% silver solder is used throughout.

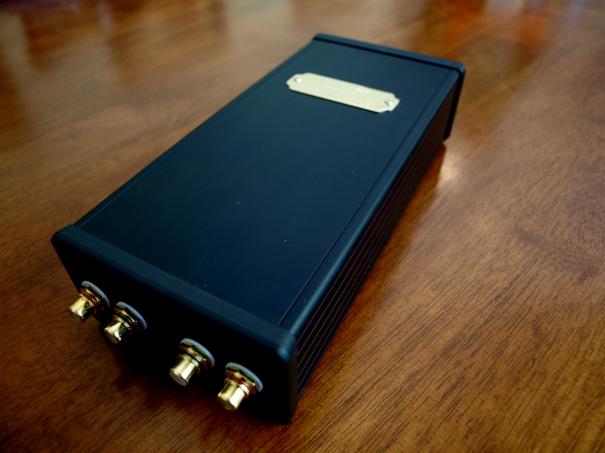

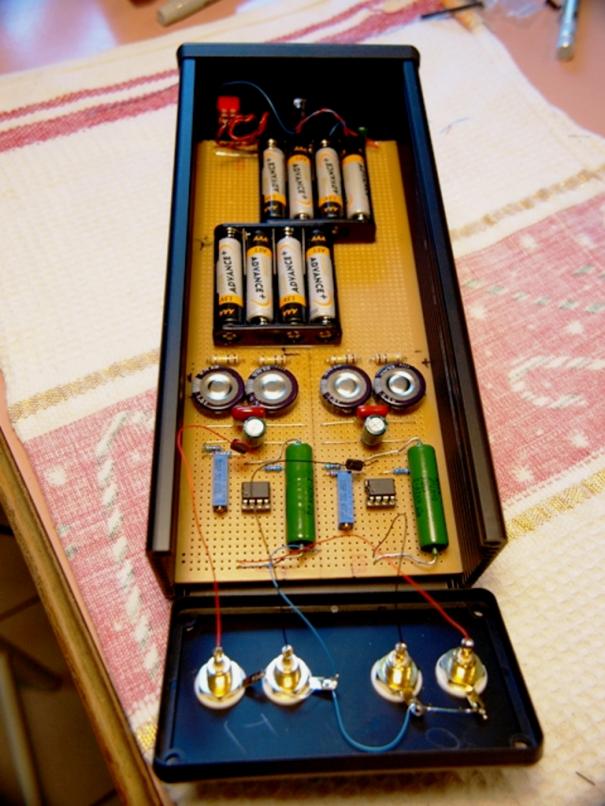

Construction is on veroboard and the enclosure is a Hammond anodised Al type. Where Mr Hiraga likes to run all devices from car batteries with huge capacitors I settled with a total of 1F (1,000,000uf) of capacitance and 8 X AAA batteries all on board. The batteries supply +/- 6V. To maintain even battery discharge and to guarantee all four 1F caps get equal voltage loads a resistive network is used. The capacitors are in series to meet voltage level requirements (4 X 1F @ 5.5V). Additional caps are added: 220uf low ESR and 0.1uf to ensure good mid-range band pass and snubbing of noise.

Twenty five turn trim pots are adjusted to ensure zero volts at the input and Russian PIO caps are used on the output. An exceptionally low current draw should ensure over 200 hours between battery replacements even with cheap batteries. On early listens this MC preamp sound natural and appears to be working well with my Audio-Technica AT-F3/MKIII with an output of 0.35mV
retro-thermionic

Comments

• noyan
• 18 April 2013 at 06:22AM
• Nice!

• Retro
• 1 June 2013 at 09:31PM
• Mate thanks for the "Nice" comment.I like this MC preamp but when I compared it to a simpler Le Pacific MC stage I made a golden-eared friend said there was very little difference between them. Since then I have received the BHL MC stage. Yet to try it.
