- Item: Chip Amp
- Type: LM3875TF
- Posted: 4 August 2010
- Builder: Wardsweb
- Country: United States
- Comments: 0
Gainclone 3875
It all starts with parts: LM3875TF from National Semiconductor,

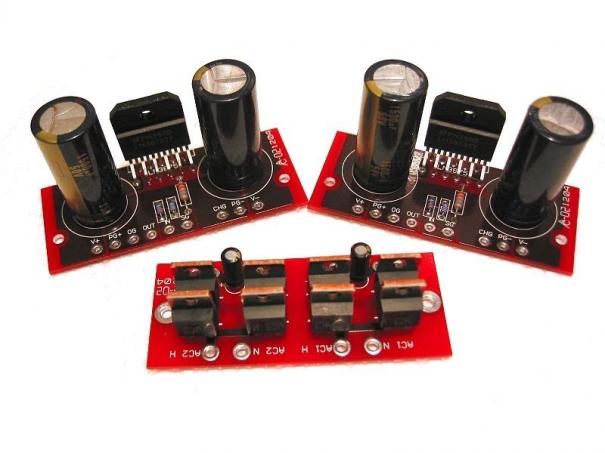

some very cool heat pipe heat sinks and PCB's from BrianGT and chipamp.com

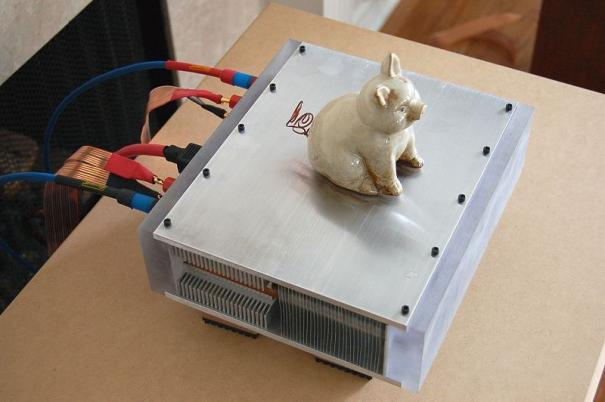

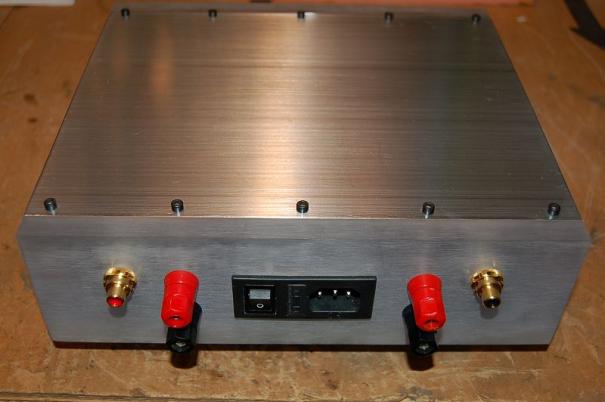

The chassis is made from 1" plexiglass, sanded and routered to fit the 6061 billet aluminum plate.
Much machining, cutting, sanding, drilling, and tapping to fit all the pieces.

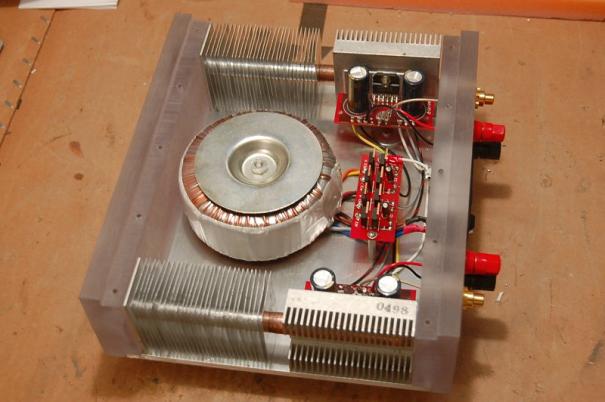

Add the Avel Y236651 tranformer (Parts Express 122-620) Viola ! an amplifier starts to come to life.
some very cool heat pipe heat sinks and PCB's from BrianGT and chipamp.com
The chassis is made from 1" plexiglass, sanded and routered to fit the 6061 billet aluminum plate.
Much machining, cutting, sanding, drilling, and tapping to fit all the pieces.
Add the Avel Y236651 tranformer (Parts Express 122-620) Viola ! an amplifier starts to come to life.
